| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V521514 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Low Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .141 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V521514 |

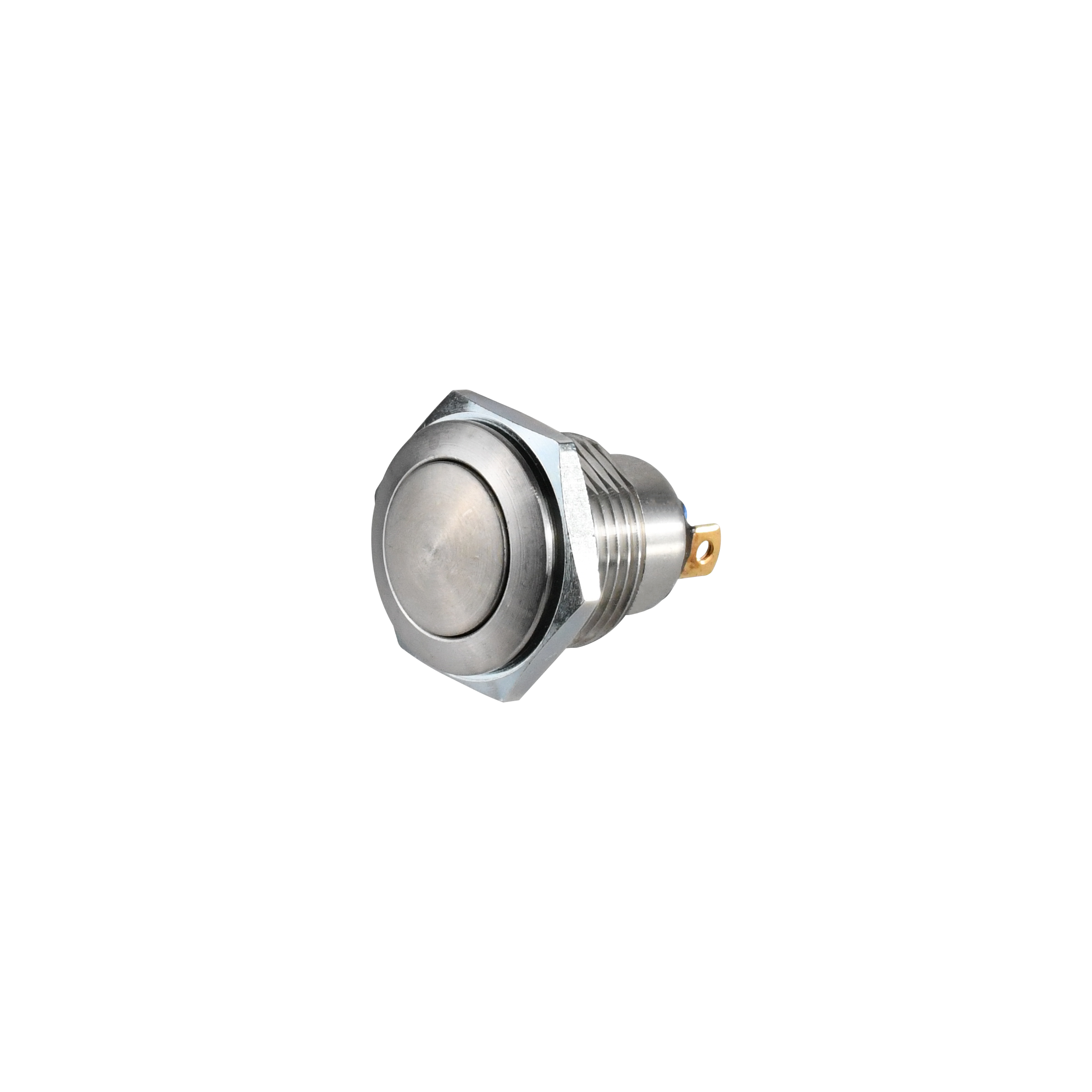

P8-V521514
Specifications
Detailed Description
Introducing the P8-V521514, a durable and reliable Vandal Resistant Pushbutton Switch designed for high-performance applications. With a sleek Silver finish and IP6K8S rating, this switch is perfect for outdoor or industrial use. The stainless steel construction ensures longevity, with a switch function of Off-(On) and a current rating of 10A. The low profile curved button actuator, featuring a round shape, offers ergonomic and easy operation. Panel mountable with a screw termination, it guarantees secure installation. Operating at temperatures ranging from -55°C to 85°C, and with AC and DC voltage ratings of 115V and 28V respectively, this switch is versatile and adaptable to various environments. Trust in the P8-V series for premium quality and performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
