| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V521515 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V521515 |
P8-V521515
Specifications
Detailed Description

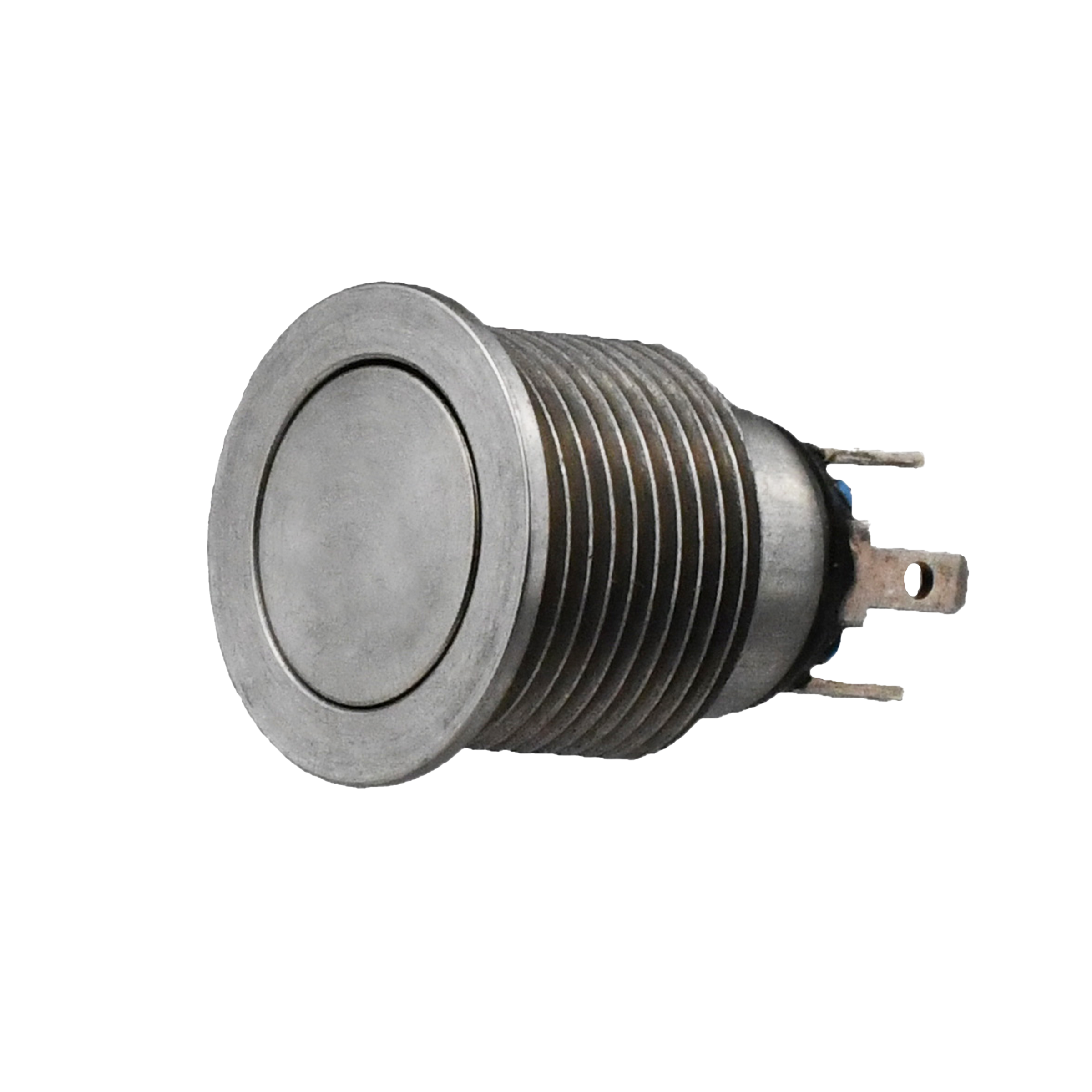

The P8-V521515 Vandal Resistant Pushbutton Switch is a rugged and reliable panel-mounted switch designed for demanding environments. With a stainless steel construction and silver contact plating, it offers durability and longevity, rated for 100,000 cycles. Featuring a flush round button actuator and a sealed design, it ensures protection against water and dust ingress, meeting IP6K8S standards. This SPST-NO switch has a 10A current rating and operates at 115VAC or 28VDC, making it suitable for a variety of applications. From industrial machinery to outdoor equipment, this switch performs flawlessly in temperatures ranging from -55°C to 85°C, offering dependable performance in any setting.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
