| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V531213 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V531213 |

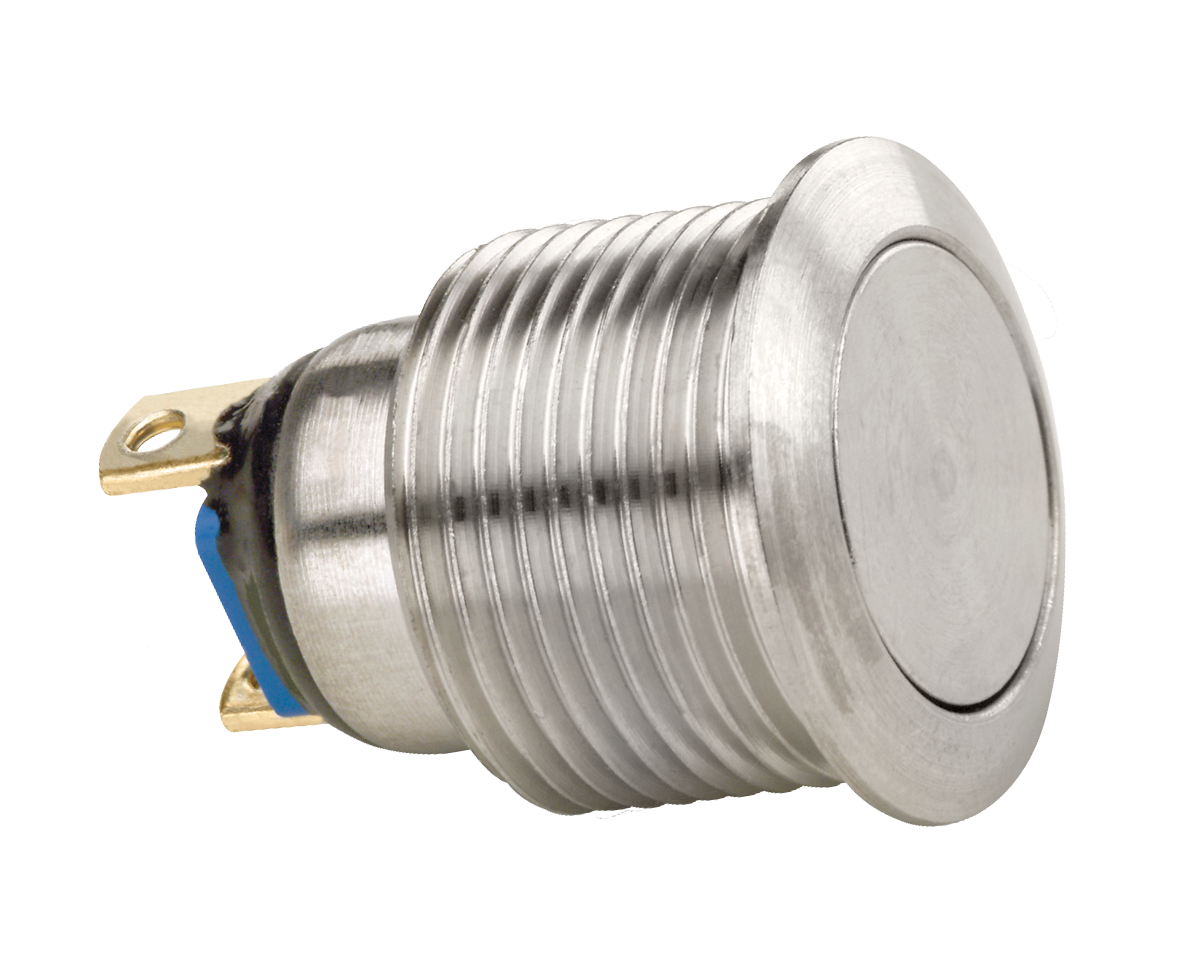

P8-V531213
Specifications
Detailed Description
Introducing the P8-V531213, a top-of-the-line Vandal Resistant Pushbutton Switch designed for uncompromising performance in demanding environments. Featuring a sleek stainless steel construction with a Silver finish, this switch not only exudes durability but also offers IP6K4S sealing for reliable operation. The low profile flat Button actuator, with a Round shape and .079-inch length, ensures easy and precise activation. With a current rating of 10A and contact plating in Silver, it guarantees efficient conductivity. Ideal for panel mounting, it boasts a long-lasting 100,000 cycle durability rating. The SPST-NO contact configuration, along with a voltage rating of 115VAC and 28VDC, caters to diverse electrical needs. Operating flawlessly in temperatures ranging from -55°C to 85°C, this Push Button Switch is a must-have for applications where performance and longevity are paramount.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
