| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V711514 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .141 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V711514 |

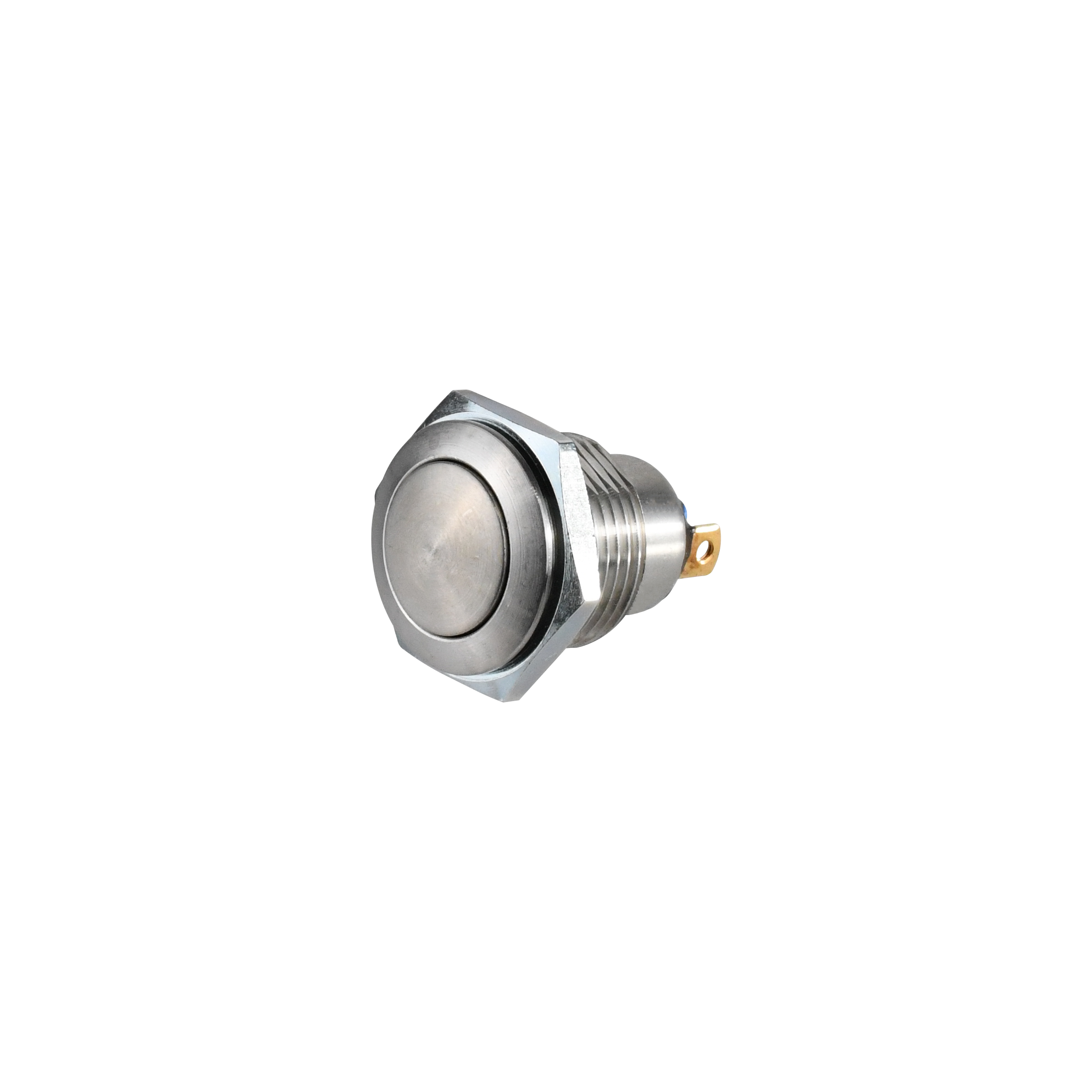

P8-V711514
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, crafted for durability and reliability in demanding environments. With a sleek silver design and a low profile curved button, this switch offers a seamless blend of style and functionality. Its stainless steel construction and IP6K8S rating ensure protection against water and dust ingress, making it ideal for outdoor or industrial use. Featuring a 10A current rating and SPST-NO contact configuration, it guarantees efficient performance. Panel mountable with solder termination, installation is hassle-free. Operating smoothly from -55°C to 85°C, it's suitable for a wide range of applications. Trust in its 100,000 cycle durability rating and enjoy peace of mind. Upgrade to the P8-V711514 for a premium pushbutton switch solution.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
