| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V721314 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .141 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V721314 |

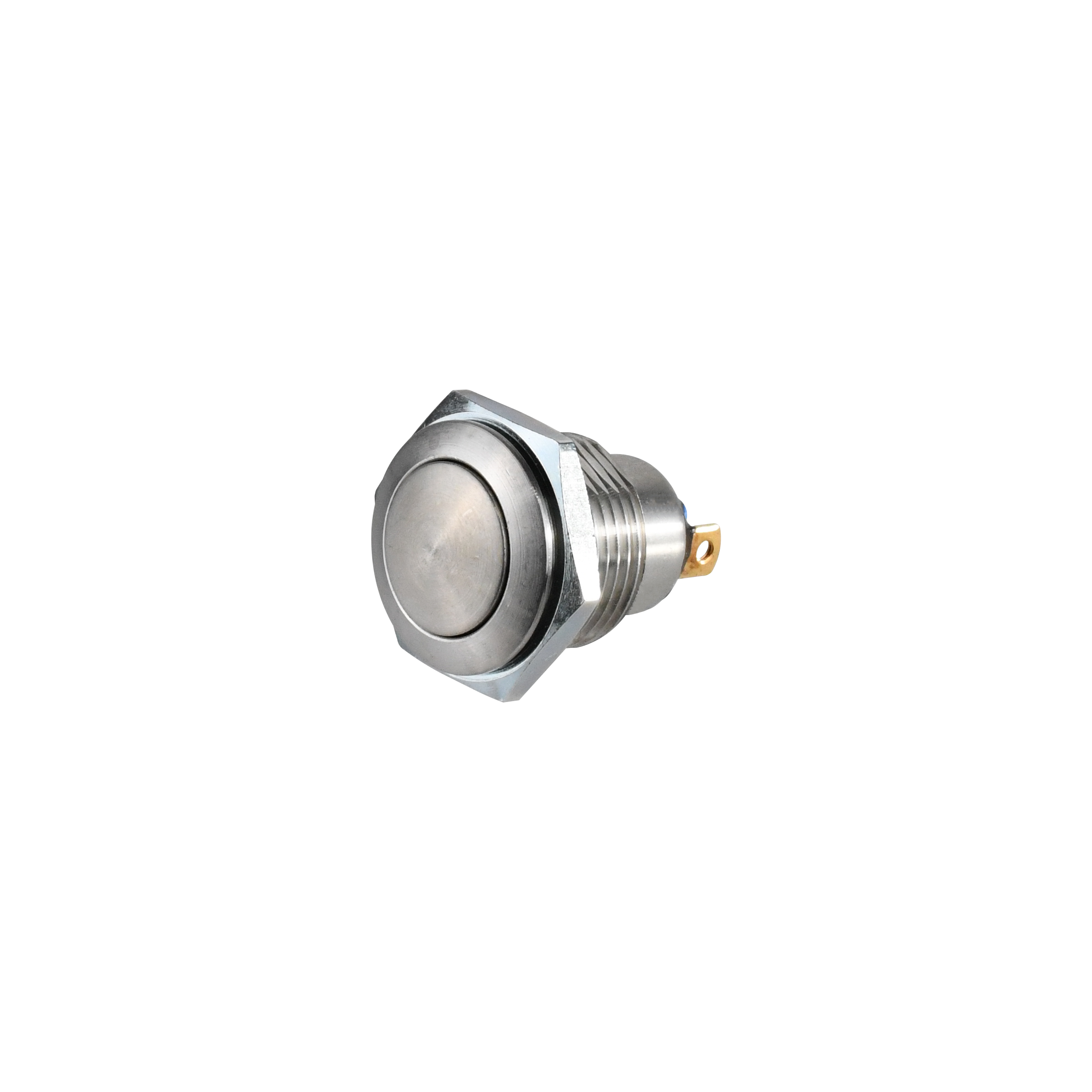

P8-V721314
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, part of the P8-V series. This durable switch features a sleek silver design with an IP6K8S rating, ensuring protection against dust and water ingress. The low-profile curved button actuator, made of stainless steel, offers a comfortable and reliable user experience. With a 10A current rating and SPST-NO contact configuration, it's perfect for a variety of applications. Panel mount installation and screw termination make setup easy. Operating between -55°C to 85°C, this switch guarantees performance in extreme conditions. Ideal for industrial and outdoor use, it promises longevity with a 100,000 cycle durability rating. Upgrade to the P8-V721314 for dependable operation in any environment.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
