| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V721325 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V721325 |

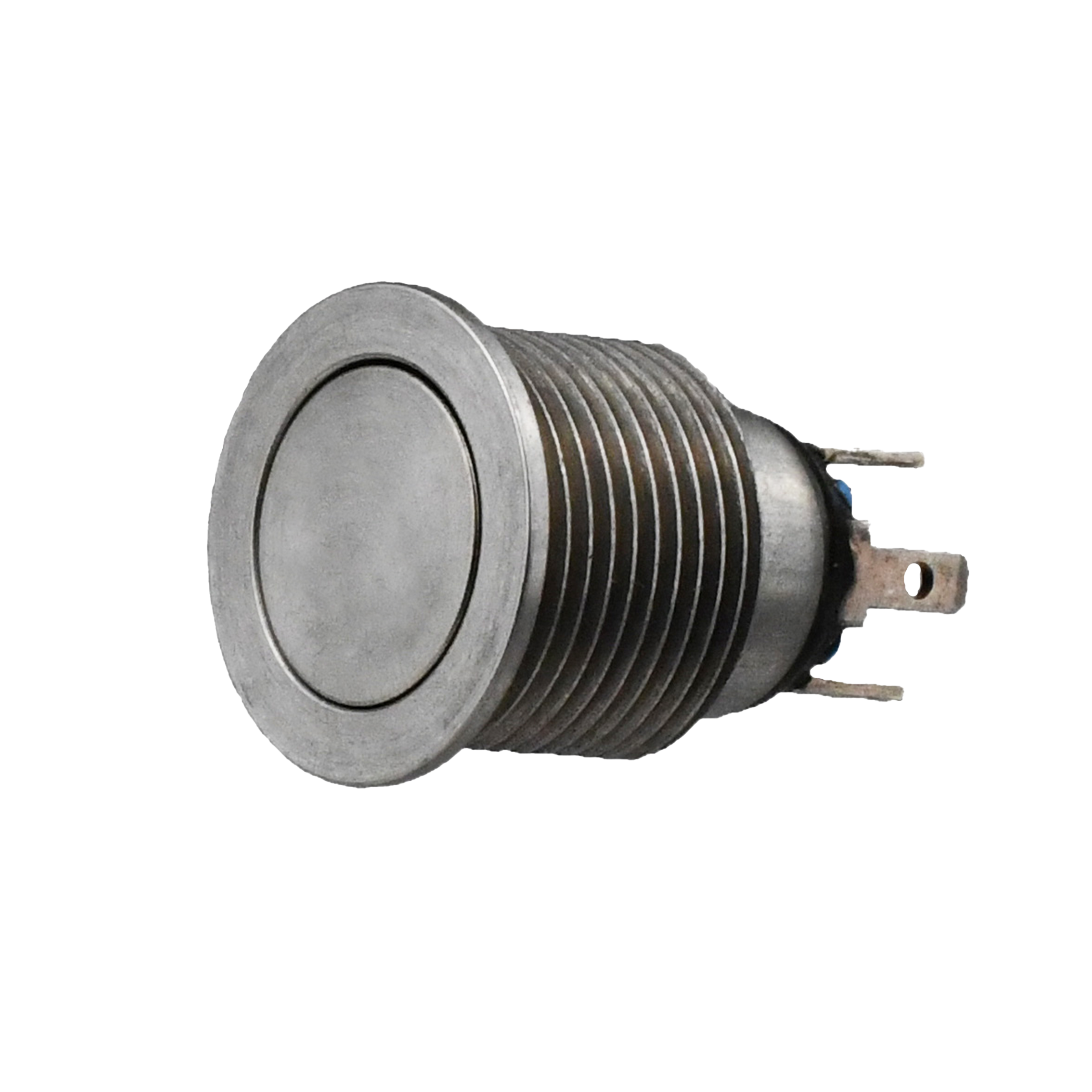

P8-V721325
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, a durable and reliable solution for your industrial control applications. Featuring a sleek silver design with a flush round button actuator, this switch is not only visually appealing but also rated for IP6K8S protection against dust and water ingress. Constructed with high-quality stainless steel materials, it ensures longevity even in harsh environments. With a 10A current rating, SPST-NO contact configuration, and a 100,000 cycle durability rating, this switch guarantees seamless performance. Whether you need panel-mount installation with screw terminations or operation within a wide temperature range from -55°C to 85°C, this switch is up to the task. Trust in the P8-V721325 for uncompromising quality and functionality in your control systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
