| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V731515 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V731515 |

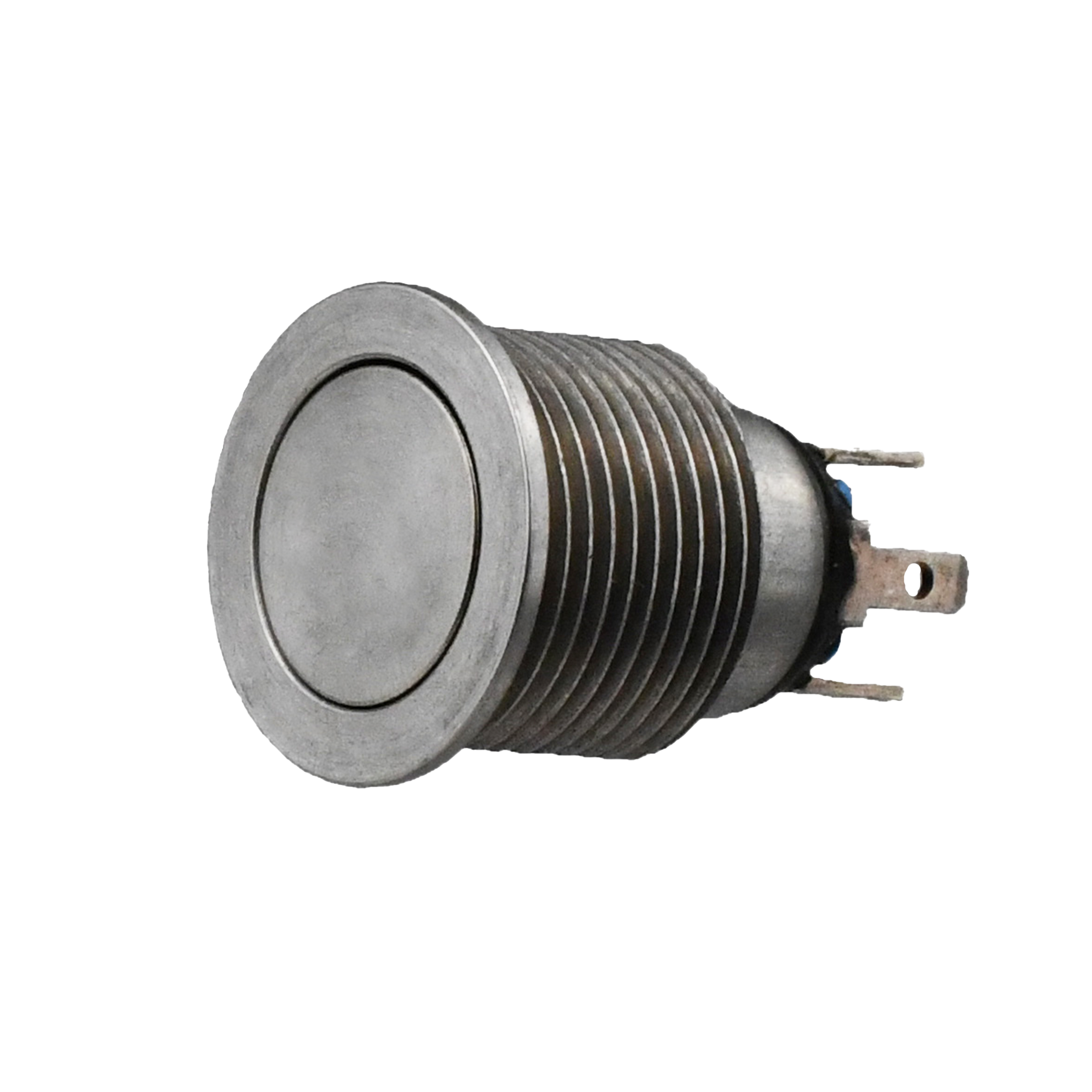

P8-V731515
Specifications
Detailed Description
Introducing the P8-V731515, part of the rugged P8-V series. This vandal-resistant pushbutton switch, featuring a sleek silver design and IP6K8S rating for superior durability, is perfect for demanding environments. With a stainless steel construction, it ensures longevity even in harsh conditions. The button, flush-mounted on panels, offers a reliable SPST-NO contact configuration, ideal for off-(on) functions. Operating at up to 115VAC and 28VDC, with a current rating of 10A, it's suitable for various applications. Its high durability of 100,000 cycles, along with a wide temperature range from -55°C to 85°C, guarantees consistent performance. The P8-V731515 is a dependable choice for industries requiring robust and long-lasting pushbutton switches.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
