| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9-131191 |
| Series: | P9 |
| Housing Material: | Thermoplastic (TP) |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | White |
| Actuator Material: | Thermoplastic |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .101 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 3 A | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP9-131191 |
P9-131191
Specifications
Detailed Description

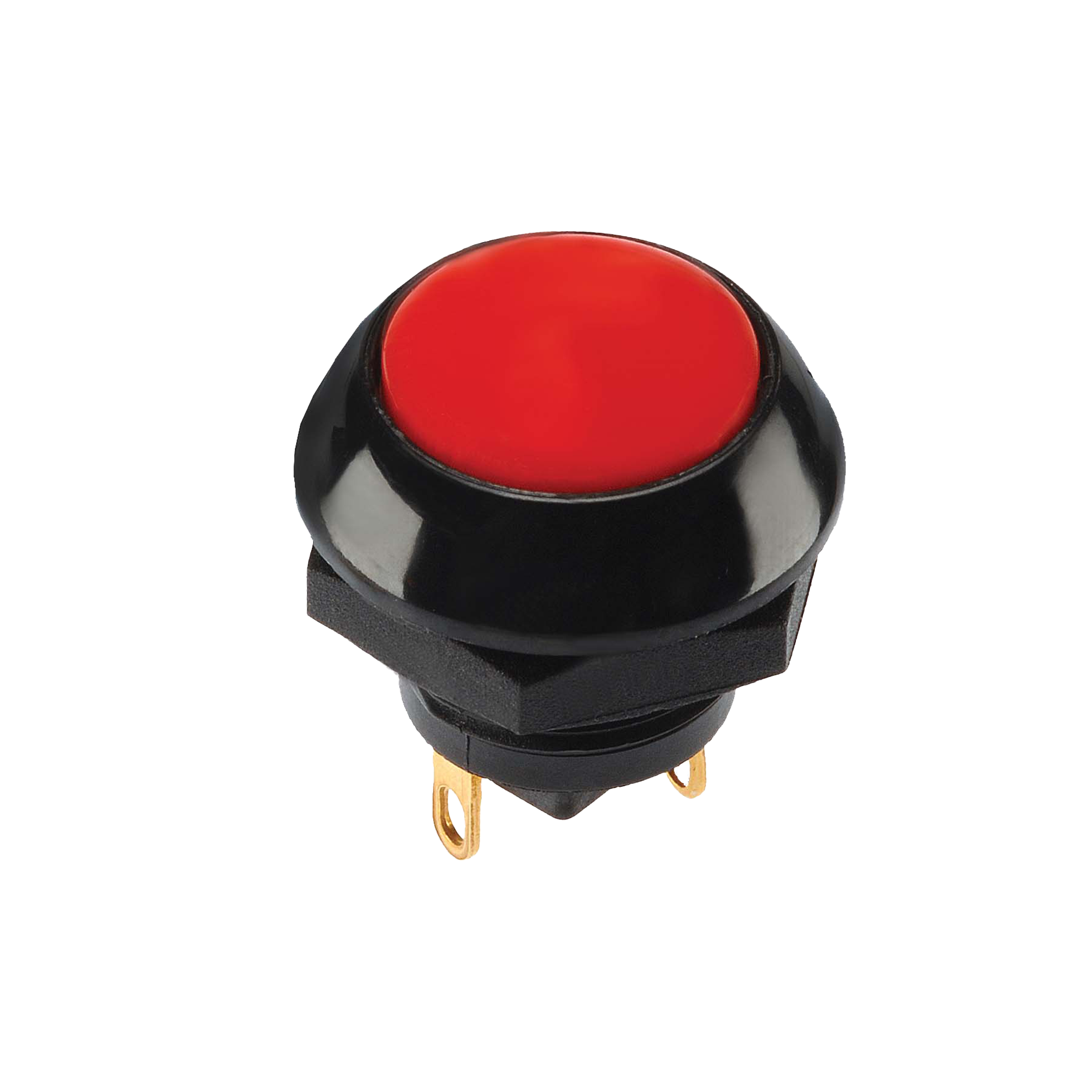

Introducing the Sealed Dome Pushbutton Switch from the P9 series, SKU P9-131191. This high-quality switch features a sleek design with a red flush dome button, perfect for panel mounting applications. With an IP6K4S rating, it ensures reliable performance even in harsh environments. The durable thermoplastic housing and gold-plated brass contacts guarantee longevity, with a durability rating of 25,000 cycles. Operating at temperatures ranging from -40°C to 85°C, it is suitable for a wide range of industrial settings. The SPST-NO contact configuration and Off-(On) switch function make it ideal for various control and power applications. Rated for 115 VAC and 28 VDC, it offers versatility in voltage compatibility. Upgrade your equipment with this dependable sealed pushbutton switch, a must-have in the category of hi_rel products.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
