| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9-511121 |
| Series: | P9 |
| Housing Material: | Thermoplastic (TP) |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .101 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 3 A | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP9-511121 |
P9-511121
Specifications
Detailed Description

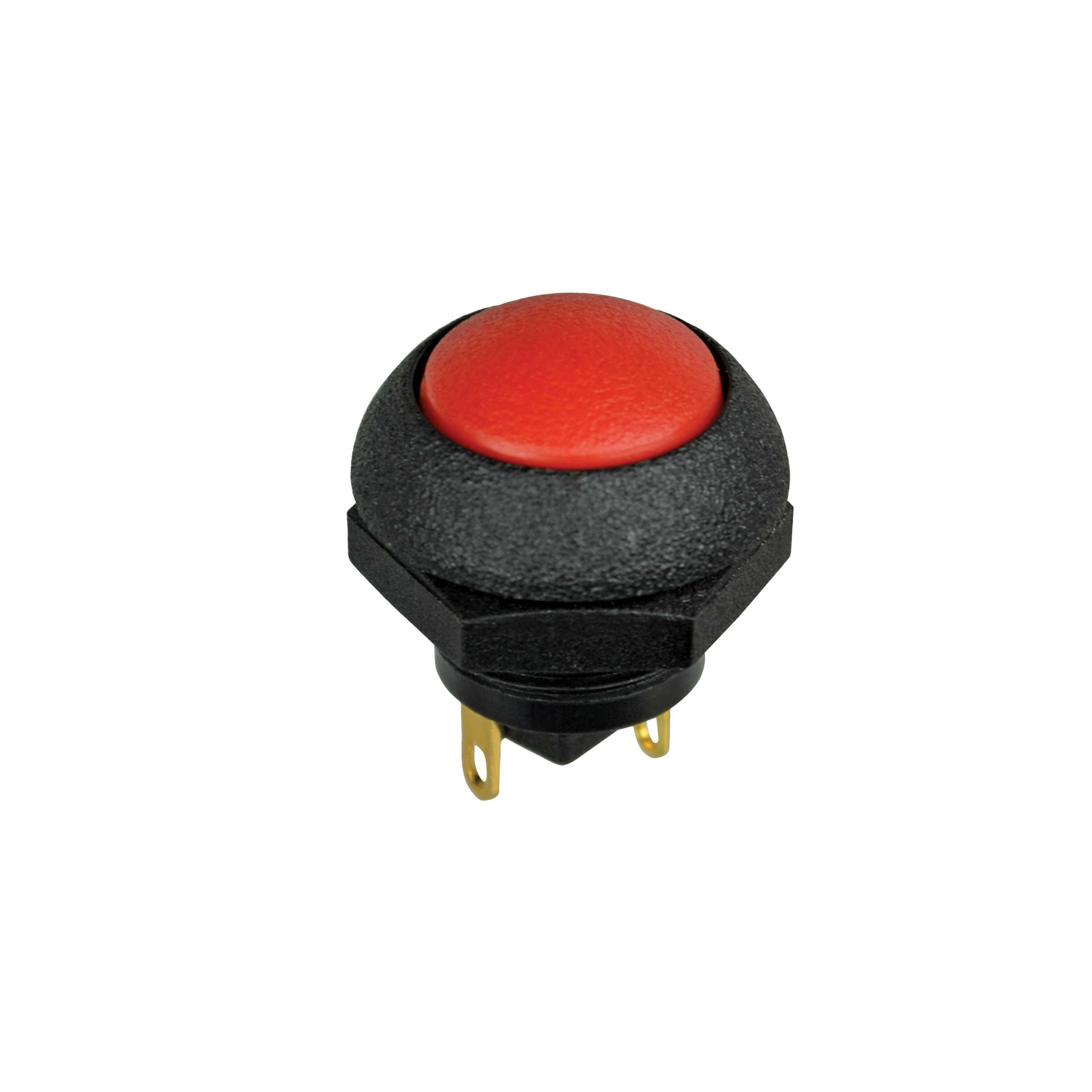

Introducing the P9-511121, a robust and reliable Push Button Switch from our P9 series. Featuring a sleek Black case with a striking Red Flush Dome button, this switch is designed for durability with a rating of 25,000 cycles. Its sealed construction, with an IP6K4S rating, ensures protection from dust and water ingress, making it ideal for various environments. The brass contact material with gold plating guarantees efficient conductivity, while the Thermoplastic housing offers both strength and longevity. With a current rating of 3A for AC and 5A for DC, and a voltage rating of 115VAC and 28VDC, this switch is suitable for a wide range of applications. The SPST-NO contact configuration and Off-(On) switch function provide reliable operation. Perfect for panel mounting, the P9-511121 is a versatile and high-performance component in the realm of Push Button Switches.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
