| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9-A11121W |
| Series: | P9 |
| Housing Material: | Thermoplastic (TP) |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Raised Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .211 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 3 A | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP9-A11121W |
P9-A11121W
Specifications
Detailed Description

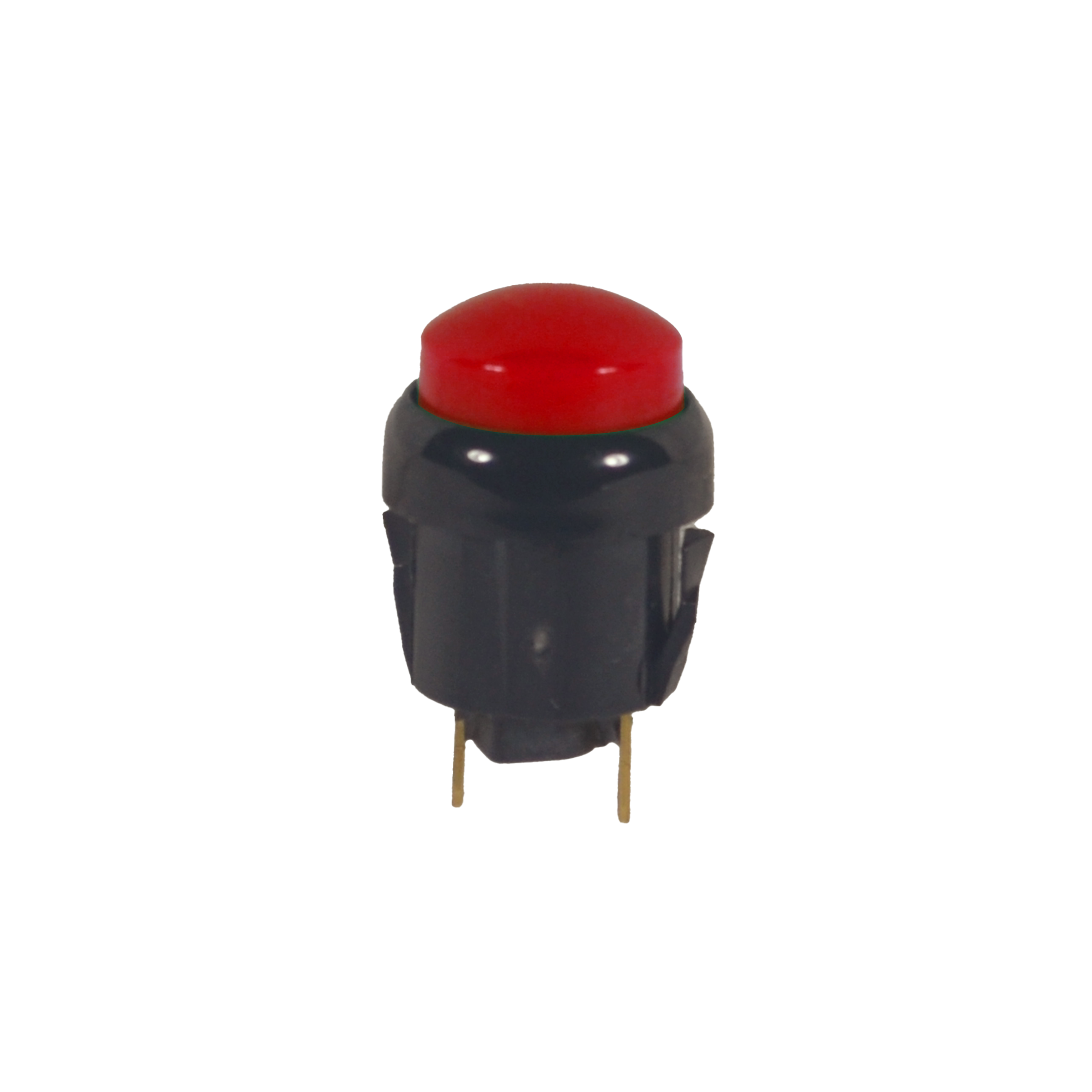

Introducing the P9 Series Sealed Dome Pushbutton Switch, P9-A11121W. This high-performance switch features a red raised dome button actuator, ensuring tactile feedback and durability with a 25,000 cycle rating. The IP6K8S sealing protects against harsh environments, while the gold-plated brass contacts guarantee reliable conductivity. With a 3A/5A current rating, and SPST-NO contact configuration, it's ideal for various applications. Panel mountable with solder termination, it offers easy installation. Operating from -40°C to 85°C, and rated for 115VAC/28VDC, this switch is suitable for demanding conditions. Upgrade your control systems with this rugged, dependable component.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
