P9-A41121

OTTP9_A41121
Heilind Number:OTTP9-A41121
Manufacturer:OTTO Controls
Manufacturer Number:P9-A41121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

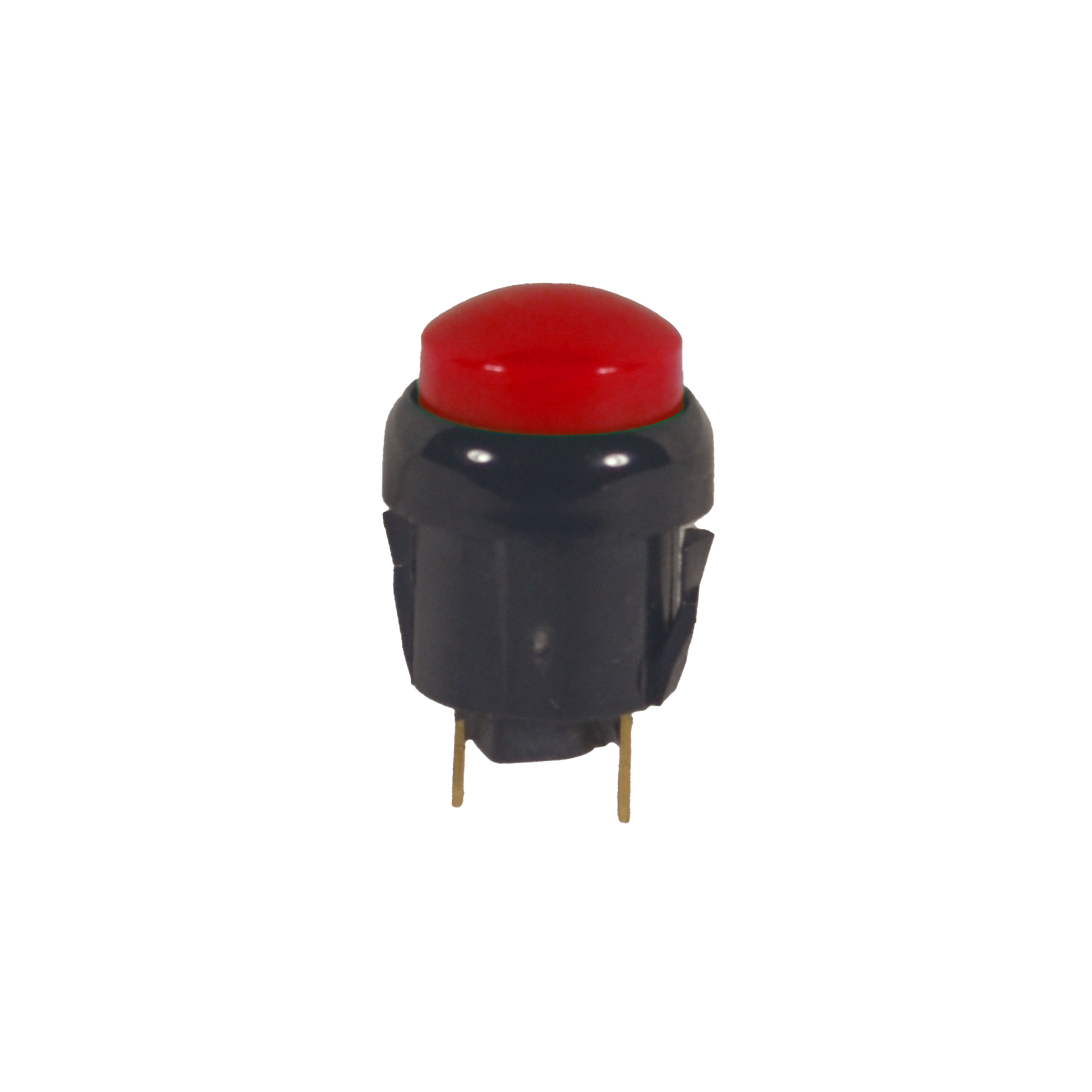

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-A41121
Series:P9
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.211 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-A41121

Detailed Description

The P9-A41121 Sealed Dome Pushbutton Switch is a high-performance component designed for reliability in demanding environments. Featuring a red button with a raised dome actuator, this switch offers a tactile response for assured operation. Its IP6K4S rating ensures protection against dust and water ingress, while the black thermoplastic case guarantees durability. With a contact plating of gold and a contact material of brass, it promises excellent conductivity and longevity. Ideal for panel mounting, it has a current rating of 3A or 5A, making it suitable for various applications. Whether used in industrial machinery or consumer electronics, this switch delivers consistent performance with its SPST-NO contact configuration and Off-(On) switch function. With a wide operating temperature range from -40°C to 85°C and a durability rating of 25,000 cycles, it is built to last. Trust in the P9 series for quality and reliability in your projects.
