| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9M-212121 |
| Series: | P9M |
| Housing Material: | Thermoplastic (TP) |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .38 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 200,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 4 A |
| Voltage Rating (DC): | 12 VDC |
| SKU: | OTTP9M-212121 |
P9M-212121
Specifications
Detailed Description

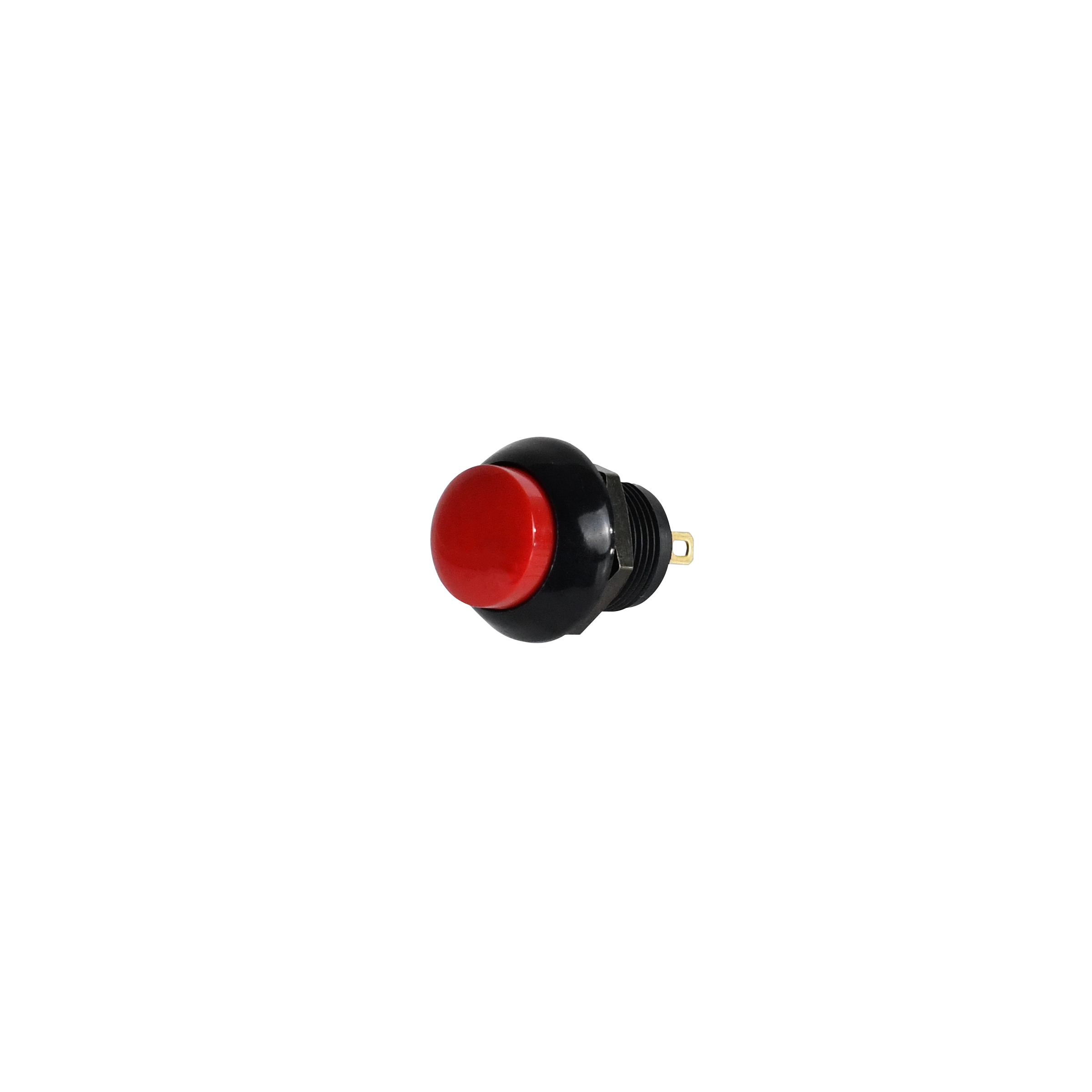

Introducing the P9M Series Sealed Latching Pushbutton Switch, featuring a durable design with an IP6K8S waterproof rating, making it ideal for use in harsh environments. The red flush dome button with gold-plated contacts ensures reliable performance, even in high-stress applications. With a current rating of 4A and a voltage rating of 12VDC, this switch is suitable for a wide range of electronic devices. The thermoplastic housing and actuator materials guarantee longevity, while the solder termination type allows for easy installation. With a 200,000 cycle durability rating and a wide operating temperature range from -40°C to 85°C, this switch offers long-lasting and reliable operation. Upgrade your equipment with the P9M212121 for seamless functionality in any setting.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
