| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P9M-212122 |
| Series: | P9M |
| Housing Material: | Thermoplastic (TP) |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .38 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 200,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 4 A |
| Voltage Rating (DC): | 12 VDC |
| SKU: | OTTP9M-212122 |
P9M-212122
Specifications
Detailed Description

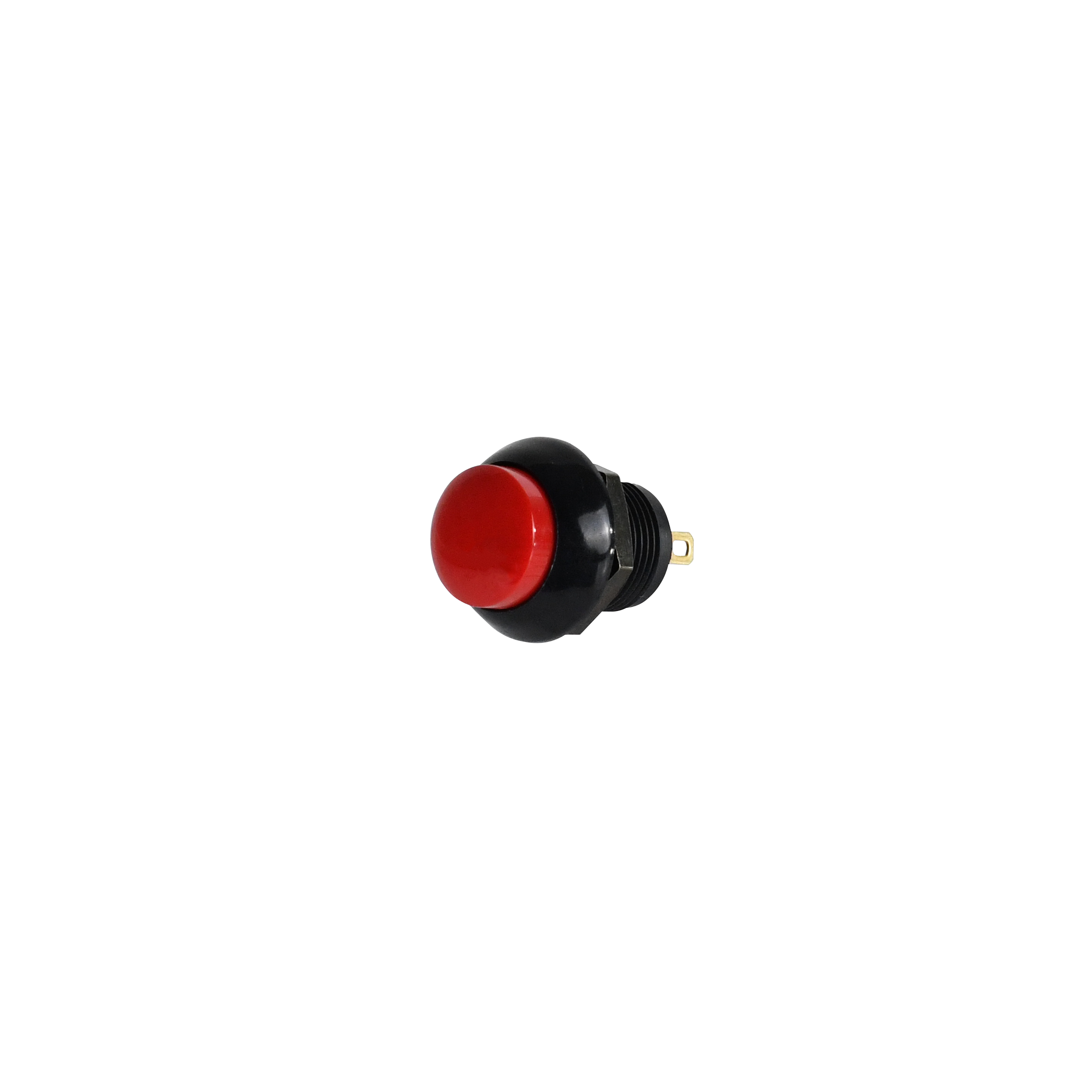

Introducing the P9M Series Sealed Latching Pushbutton Switch, SKU P9M-212122. This high-quality switch features a durable thermoplastic housing in sleek black, perfect for panel mount installation. With an IP6K8S rating and gold contact plating, it guarantees reliable performance even in harsh environments. The button, with a flush dome actuator, offers a comfortable and responsive touch, ideal for various applications. Operating at 12VDC and 4A, this SPST-NO switch ensures efficient power control. With a lifespan of 200,000 cycles and a wide temperature range from -40°C to 85°C, it's built for long-lasting use. Upgrade your equipment with this dependable and versatile pushbutton switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
