| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls PE-1211 |
| Series: | PE |
| Cap Color: | Red |
| IP Rating: | Symbol 2 |
| Case Color: | Clear |
| Illumination: | Not Illuminated |
| Actuator Type: | Button |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .136 in |
| Contact Plating: | Silver Alloy |
| Switch Function: | OFF-ON |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTPE-1211 |

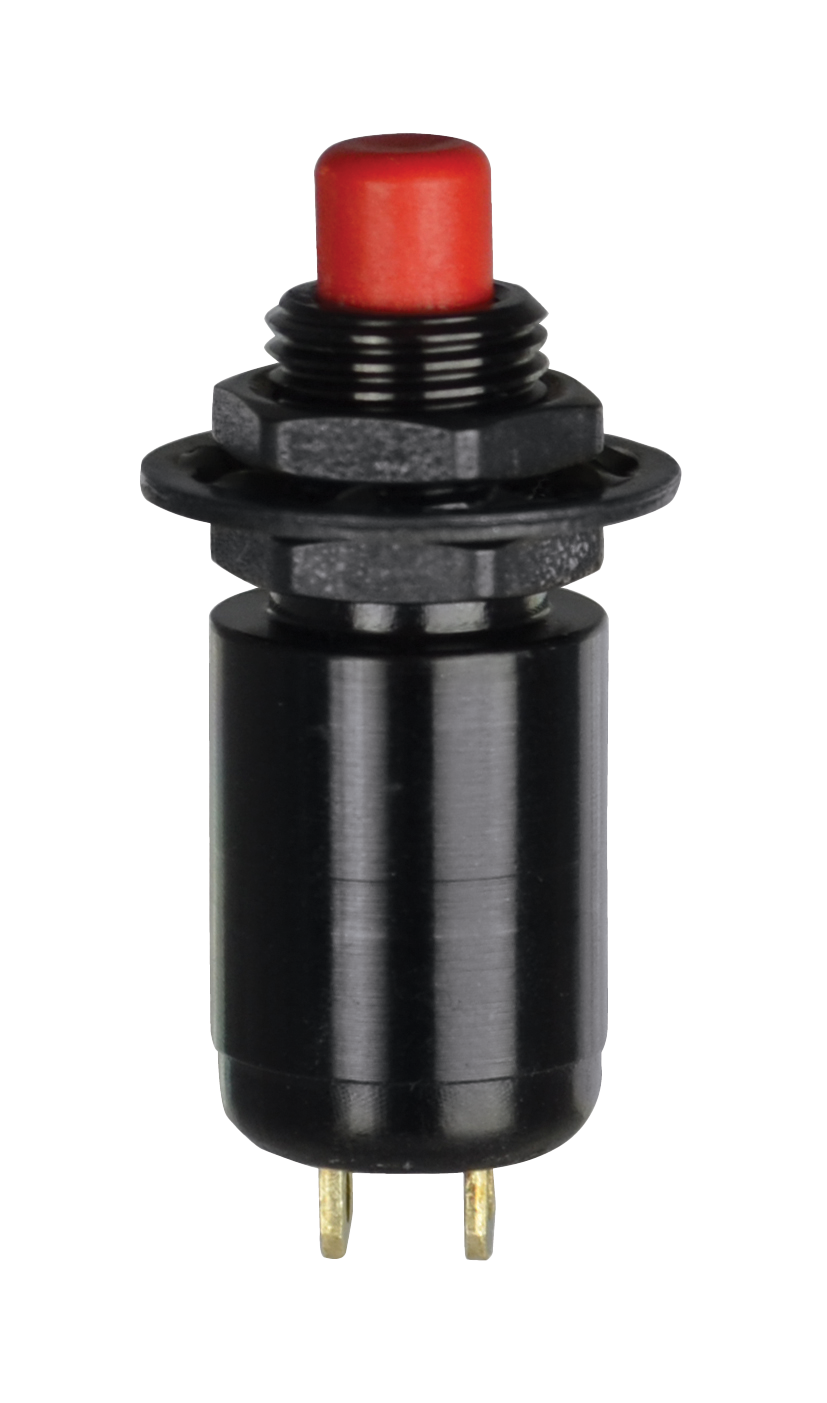

PE-1211
Specifications
Detailed Description
Introducing the PE-1211, a rugged and reliable pushbutton switch designed for demanding applications. Part of the PE series, this switch features a vibrant red cap for easy visibility and a clear aluminum housing for durability. With an IP rating of 2, it offers basic protection against dust and liquids. The SPST-NO contact configuration ensures seamless operation, and the 5A current rating makes it suitable for various power requirements. Panel mountable, it boasts a thermoplastic actuator and silver alloy contact plating for enhanced performance. Operating temperature ranging from -55°C to 85°C, this switch is built to withstand harsh environments. Perfect for military and aerospace use, the Mil-PRF-8805/96 certification guarantees reliability. Trust the PE1211 for momentary action control in critical systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
