| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls PE-1222 |
| Series: | PE |
| Housing Material: | Aluminum |
| Contact Plating: | Silver Alloy |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 2 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .136 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTPE-1222 |

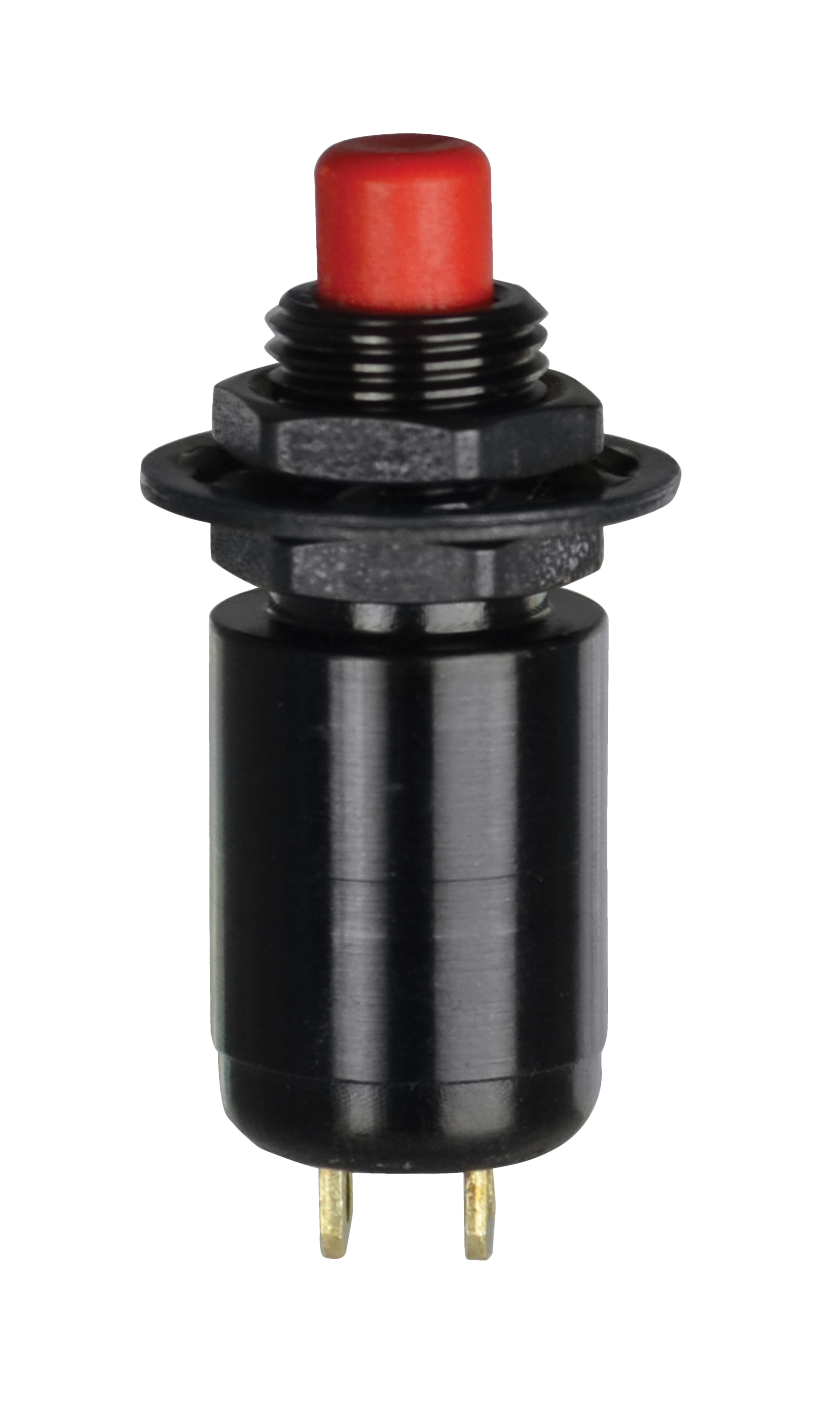

PE-1222
Specifications
Detailed Description
Introducing the PE-1222, a rugged and reliable pushbutton switch designed for demanding environments. This MIL-PRF-8805/96 certified switch, part of the PE series, features a durable aluminum housing with a sleek black finish. The SPST-NO contact configuration ensures seamless operation, while the silver alloy contact plating guarantees excellent conductivity. With a current rating of 5A, this switch is perfect for high-power applications. Its panel mount design and solder termination make installation a breeze. The momentary action and Off-(On) switch function provide precise control. Rated for 25,000 cycles, it offers long-lasting performance in temperatures ranging from -55°C to 85°C. Whether in aerospace, defense, or industrial settings, the PE-1222 is the trusted choice for critical operations.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
