| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls PE-2212 |
| Series: | PE |
| Cap Color: | Black |
| IP Rating: | Symbol 2 |
| Case Color: | Clear |
| Illumination: | Not Illuminated |
| Actuator Type: | Button |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .136 in |
| Contact Plating: | Silver Alloy |
| Switch Function: | ON-OFF |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NC |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTPE-2212 |

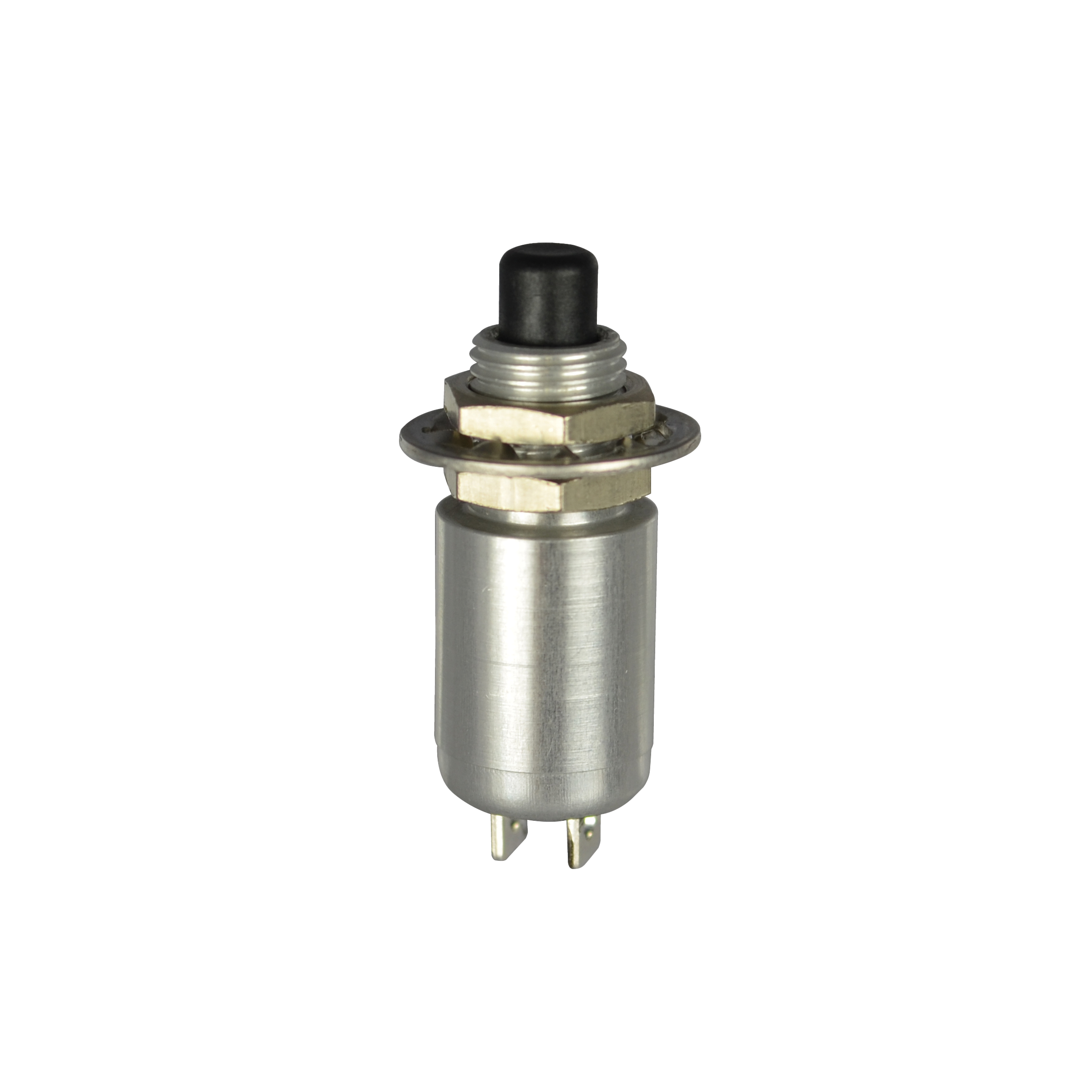

PE-2212
Specifications
Detailed Description
Introducing the PE-2212, a military-grade Pushbutton Switch designed for high-reliability applications. This durable switch, part of the PE series, features a sleek black actuator and clear case, perfect for panel mounting. With an IP rating of Symbol 2, it offers protection against dust and limited water ingress. The SPST-NC contact configuration, along with a 5A current rating, ensures efficient performance. Operating smoothly in temperatures ranging from -55°C to 85°C, this switch is built to withstand harsh environments. Its momentary action and Mil-PRF-8805/96 compliance make it ideal for aerospace, defense, and industrial use. Upgrade to the PE-2212 for reliability in every push.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
