171-015-213R001

TEX171_015_213R001
Heilind Number:TEX171-015-213R001
Manufacturer:NorComp
Manufacturer Number:171-015-213R001
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

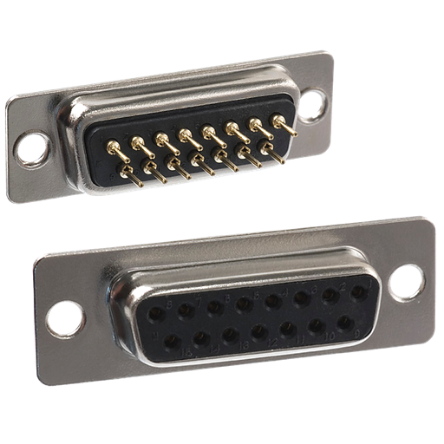

Female D-Sub 15 Position Straight PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 171-015-213R001
Series:171
Gender:Receptacle
Termination Method:Solder
Contact Plating:Gold Flash
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-50 °C
Mount Angle:Straight
Number of Positions:15
Shell Material:Steel
Shell Finish:Nickel Plated
Current Rating:5 A
Voltage Rating:250 VAC
SKU:TEX171-015-213R001

Detailed Description

Introducing the 171-015-213R001, a Female D-Sub 15 Position Straight PCB Dip Solder connector from our 171 series. Designed for reliable and secure connections, this receptacle features gold flash contact plating for enhanced conductivity. With a wide operating temperature range of -50 to 125 °C, it is suitable for use in various environments. The straight mount angle and steel shell with nickel plating ensure durability and easy installation. Rated for 5A current and 250VAC voltage, this connector is RoHS compliant, making it environmentally friendly. Perfect for applications in connectors, D-Sub & D-Ribbon Connectors & Accessories, D-Sub Connectors, and IO Connectors. Rest assured with our high-quality product, as the 171-015-213R001 is not only reliable but also cost-effective. Elevate your connectivity solutions with this essential component.
