| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp 172-E09-203R031 |
| Gender: | Receptacle |
| Series: | 172-E |
| Mount Angle: | Straight |
| Shell Finish: | Nickel Plated |
| Current Rating: | 5 A |
| Shell Material: | Steel |
| Contact Plating: | Gold Flash |
| Termination Method: | Solder Cup |
| Number of Positions: | 9 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Voltage Rating: | 250 VAC |
| Signal Wire Size: | 20-26 AWG |
| SKU: | TEX172-E09-203R031 |

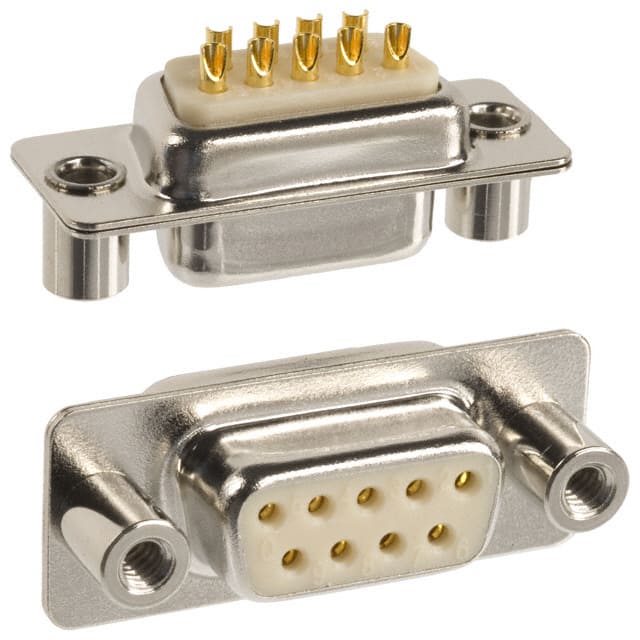

172-E09-203R031
Specifications
Detailed Description
Introducing the 172-E09-203R031, a robust Female D-Sub 9 Position Straight Solder Cup connector from our M SERIES campaign. Designed for reliable signal transmission, this receptacle features gold flash contact plating for enhanced conductivity. With a wide operating temperature range of -55°C to 125°C, it is suitable for use in various environments. The solder cup termination method ensures secure wire connections, accommodating 20-26 AWG signal wires. Constructed with a nickel-plated steel shell, this connector offers durability and longevity. It is RoHS compliant and rated for 5 A current and 250 VAC voltage, making it ideal for industrial applications. Trust the 172-E09-203R031 for high-performance connectivity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
