| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp 172-E50-203R011 |
| Series: | 172-E |
| Gender: | Receptacle |
| Termination Method: | Solder Cup |
| Contact Plating: | Gold Flash |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Mount Angle: | Straight |
| Number of Positions: | 50 |
| Shell Material: | Steel |
| Signal Wire Size: | 20-26 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 5 A |
| Voltage Rating: | 250 VAC |
| SKU: | TEX172-E50-203R011 |
172-E50-203R011
Specifications
Detailed Description

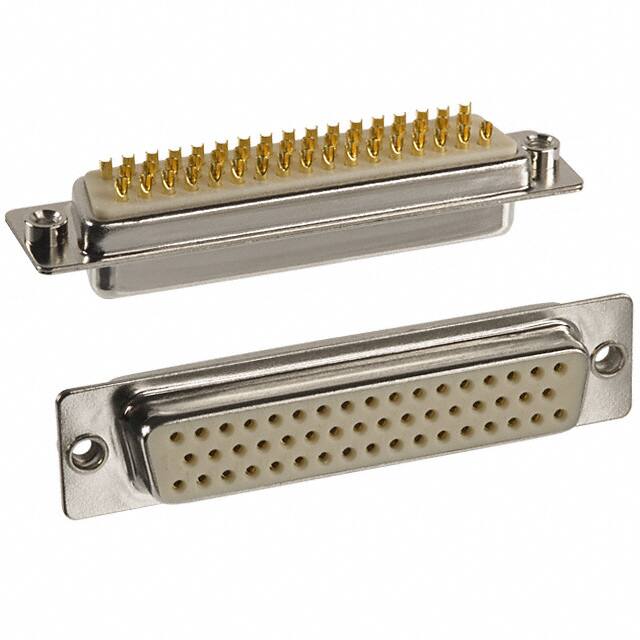

Introducing the 172-E50-203R011, a Female D-Sub 50 Position Straight Solder Cup connector from our M SERIES campaign. Designed for reliable signal transmission in demanding environments, this receptacle features gold flash contact plating for enhanced conductivity and corrosion resistance. With a wide operating temperature range of -55°C to 125°C, it ensures optimal performance in extreme conditions. The solder cup termination method offers secure and durable wire connections, suitable for 20-26 AWG signal wires. Constructed with a nickel-plated steel shell, this connector guarantees robustness and longevity. RoHS compliant and rated for 5A at 250VAC, it meets stringent quality and safety standards. Perfect for industrial and commercial applications requiring high-speed data transfer, the 172-E50-203R011 is the ideal choice for IO connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
