| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp 180-062-213R001 |
| Series: | 180 |
| Gender: | Receptacle |
| Termination Method: | Solder |
| Contact Plating: | Gold Flash |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -50 °C |
| Mount Angle: | Straight |
| Number of Positions: | 62 |
| Shell Material: | Steel |
| Shell Finish: | Nickel Plated |
| Current Rating: | 3 A |
| SKU: | TEX180-062-213R001 |
180-062-213R001
Specifications
Detailed Description

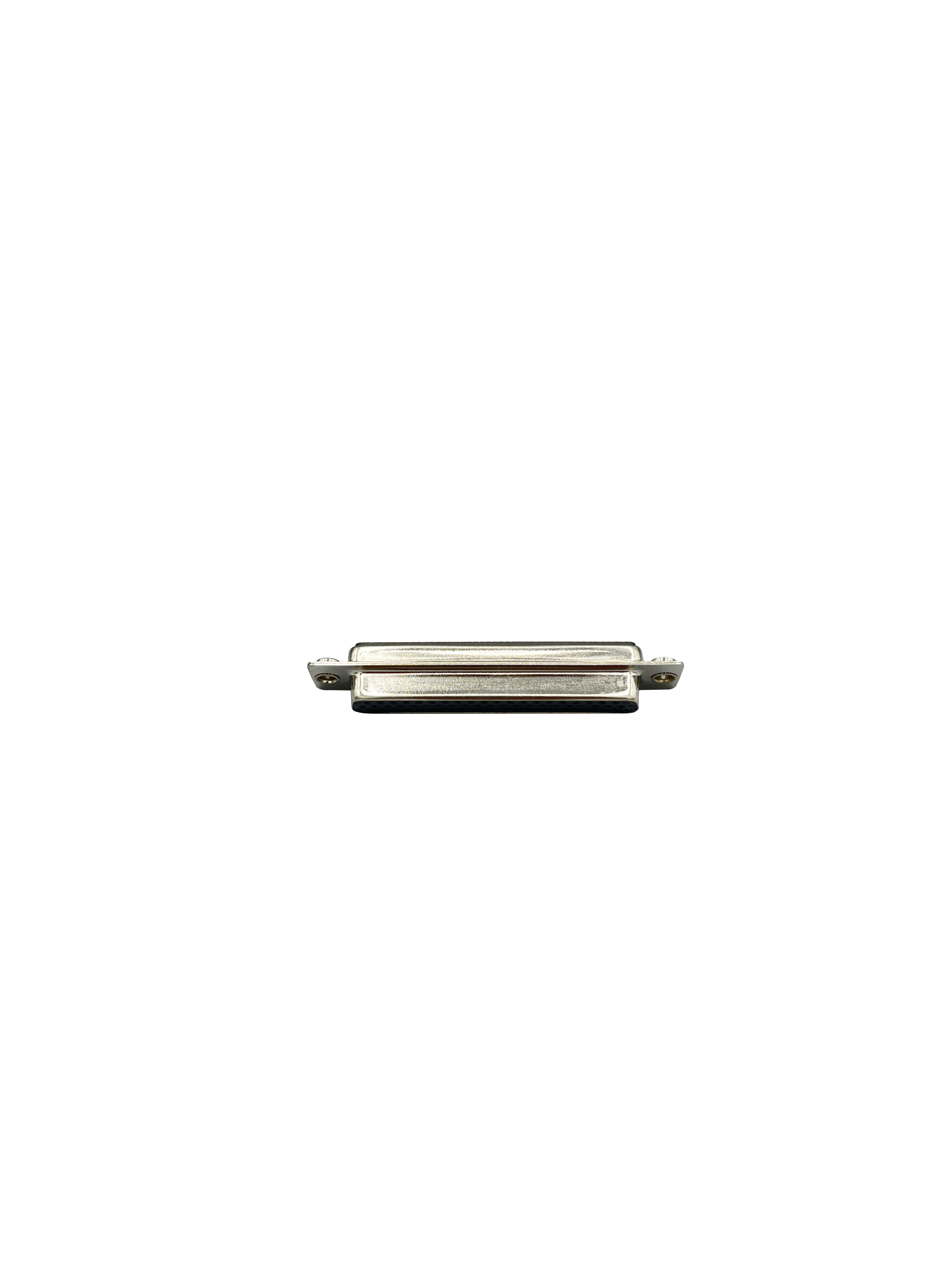

Introducing the 180-062-213R001, a Female High-Density D-Sub 62 Position Straight PCB Dip Solder connector from the 180 series. This receptacle, featuring Gold Flash contact plating, is designed for optimal performance in a wide range of applications, with a maximum operating temperature of 100°C and a minimum of -50°C. Its straight mount angle and sturdy Steel shell with Nickel Plated finish ensure secure and reliable connectivity. With a current rating of 3 A and RoHS compliance, this connector is both efficient and environmentally friendly. Perfect for use in IO connectors and other high-demand environments, the 180062213R001 offers top-tier quality and performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
