| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | NorComp |
| Manufacturer Part Number: | NorComp 182-037-113R181 |
| Series: | 182 |
| Gender: | Plug |
| Termination Method: | Solder |
| Contact Plating: | Gold Flash |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Mount Angle: | Right Angle |
| Number of Positions: | 37 |
| Shell Material: | Steel |
| Shell Finish: | Nickel Plated |
| Current Rating: | 5 A |
| Voltage Rating: | 300 VAC |
| SKU: | TEX182-037-113R181 |
182-037-113R181
Specifications
Detailed Description

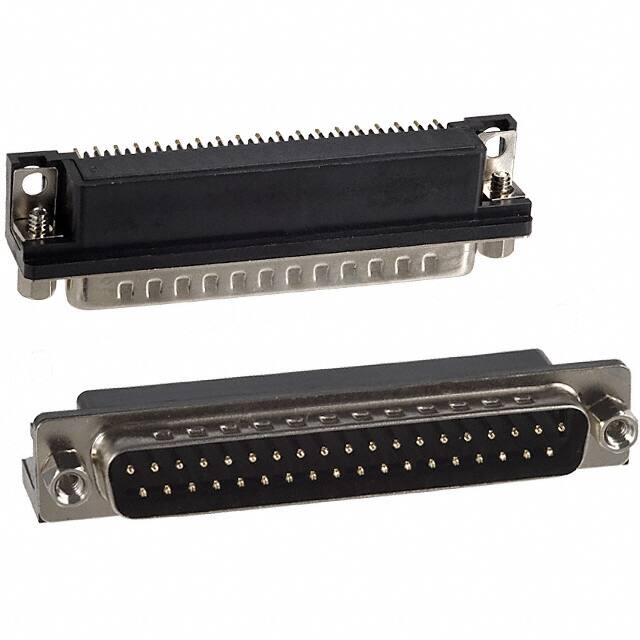

Introducing the 182-037-113R181, a male .318" Footprint D-Sub 37 Position Right Angle PCB Dip Solder connector from our 182 series. Designed for plug-in applications, this connector features gold flash contact plating for optimal conductivity. With a wide operating temperature range of -55°C to 105°C, it is suitable for use in diverse environments. The right angle mount angle allows for efficient PCB integration. Constructed with a steel shell material and nickel-plated finish, this connector ensures durability and reliability. It has a current rating of 5A and voltage rating of 300VAC, meeting high-performance requirements. RoHS compliant for environmental responsibility, this connector is ideal for IO and other connectivity applications. Elevate your projects with the 182037113R181 connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
