189-037-513R491

TEX189_037_513R491
Heilind Number:TEX189-037-513R491
Manufacturer:NorComp
Manufacturer Number:189-037-513R491
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

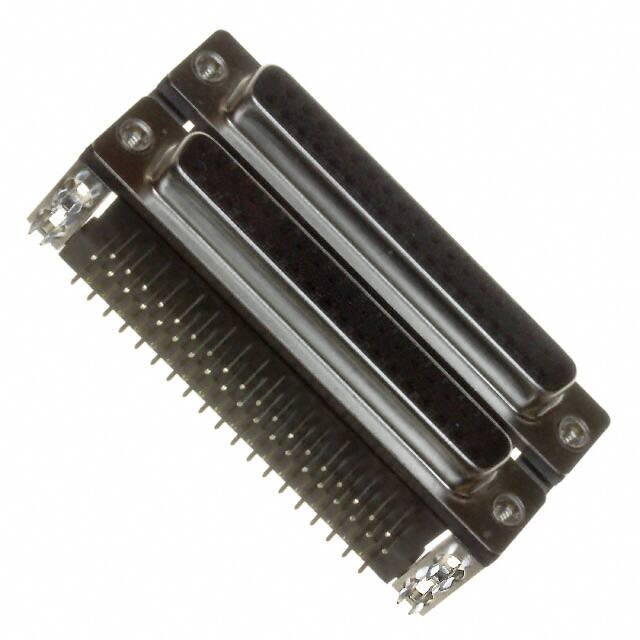

Female over Female .625" Dual-Port D-Sub 37 Position Right Angle PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 189-037-513R491
Series:189
Gender:Receptacle over Receptacle
Termination Method:Solder
Contact Plating:Gold Flash
Maximum Operating Temperature:105 °C
Minimum Operating Temperature:-55 °C
Mount Angle:Right Angle
Number of Positions:37
Shell Material:Steel
Shell Finish:Nickel Plated
Current Rating:5 A
Voltage Rating:250 VAC
SKU:TEX189-037-513R491

Detailed Description

Introducing the 189-037-513R491, a high-performance Female over Female .625" Dual-Port D-Sub Connector designed for seamless connectivity in electronic systems. With 37 gold flash-plated contacts, this connector ensures reliable signal transmission even in demanding environments. Its right-angle mount angle and PCB dip solder termination method offer easy installation on circuit boards. Constructed with a steel shell material and nickel-plated finish, it guarantees durability and robustness. Operating at temperatures ranging from -55°C to 105°C, it is suitable for a wide range of applications. With a current rating of 5A and voltage rating of 250VAC, it delivers efficient power transmission. RoHS compliant and part of the STACKED series, this connector meets the highest industry standards for quality and environmental safety. Perfect for use in industrial, aerospace, and telecommunications settings, the 189-037-513R491 is the ideal choice for high-reliability connectivity solutions.
