680S13W3103L201

TEX680S13W3103L201
Heilind Number:TEX680S13W3103L201
Manufacturer:NorComp
Manufacturer Number:680S13W3103L201
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

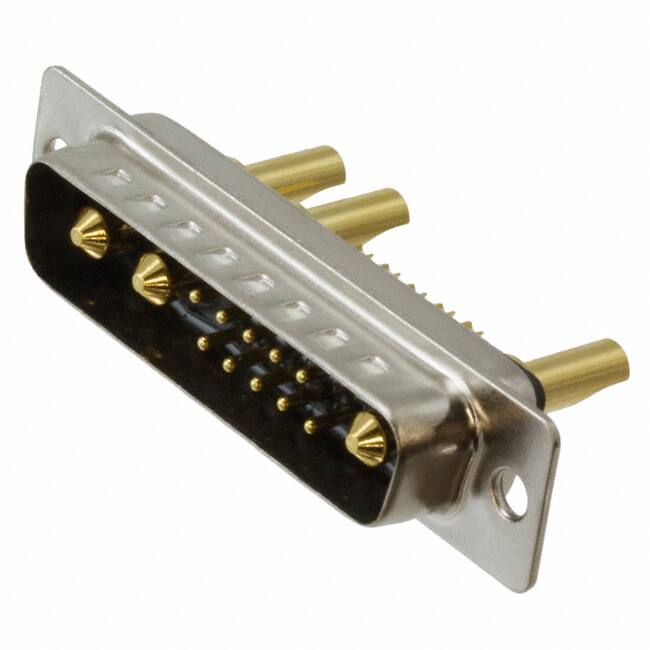

IP67 Male Mixed Contact D-Sub 13W3 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S13W3103L201
Gender:Plug
Series:680S POWER-D
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:20 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Power Wire Size:12 AWG
Termination Method:Solder Cup
Number of Positions:13 (10 Signal, 3 Power)
Signal Wire Size:20 AWG
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
SKU:TEX680S13W3103L201

Detailed Description

Introducing the 680S13W3103L201, a high-performance IP67 Male Mixed Contact D-Sub connector designed for rugged environments. This Plug connector features a straight solder cup termination method, ensuring secure and reliable connections. With 13 positions (10 Signal, 3 Power), it accommodates a range of wiring needs with a current rating of 20A for power and 5A for signals. Gold flash contact plating guarantees excellent conductivity, while a steel shell with nickel plating offers durability. Operating seamlessly in temperatures ranging from -55°C to 125°C, this connector is suitable for a variety of applications. ROHS compliant and suitable for high-voltage environments (300VAC), it meets stringent quality standards. Upgrade your connectivity with the 680S13W3103L201.
