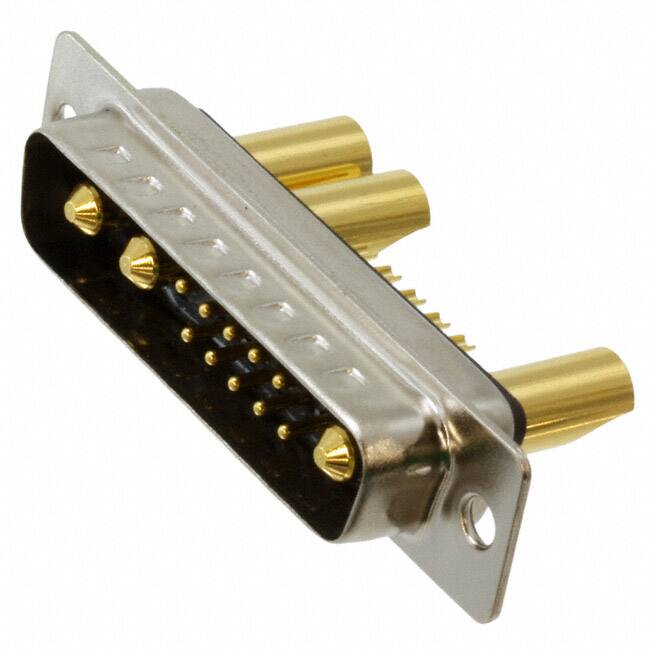

680S13W3103L401

TEX680S13W3103L401
Heilind Number:TEX680S13W3103L401
Manufacturer:NorComp
Manufacturer Number:680S13W3103L401
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

IP67 Male Mixed Contact D-Sub 13W3 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S13W3103L401
Gender:Plug
Series:680S POWER-D
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:40 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Power Wire Size:8 AWG
Termination Method:Solder Cup
Number of Positions:13 (10 Signal, 3 Power)
Signal Wire Size:20 AWG
SKU:TEX680S13W3103L401

Detailed Description

Introducing the 680S13W3103L401, a rugged and reliable IP67-rated Male Mixed Contact D-Sub connector designed for demanding industrial applications. With 13 positions (10 for signal, 3 for power), this straight solder cup plug ensures secure and durable connections in harsh environments. Featuring gold flash contact plating for optimal conductivity, it can accommodate signal wire sizes up to 20 AWG and power wire sizes up to 8 AWG, with a current rating of 40A for power and 5A for signal. Crafted from durable steel with a nickel-plated finish, it offers both strength and corrosion resistance. With a voltage rating of 300VAC and RoHS compliance, this connector guarantees safe and environmentally friendly operation. Perfect for high-power and high-reliability applications, the 680S13W3103L401 is a vital component for your connectivity needs.
