680S17W2103L401

TEX680S17W2103L401
Heilind Number:TEX680S17W2103L401
Manufacturer:NorComp
Manufacturer Number:680S17W2103L401
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

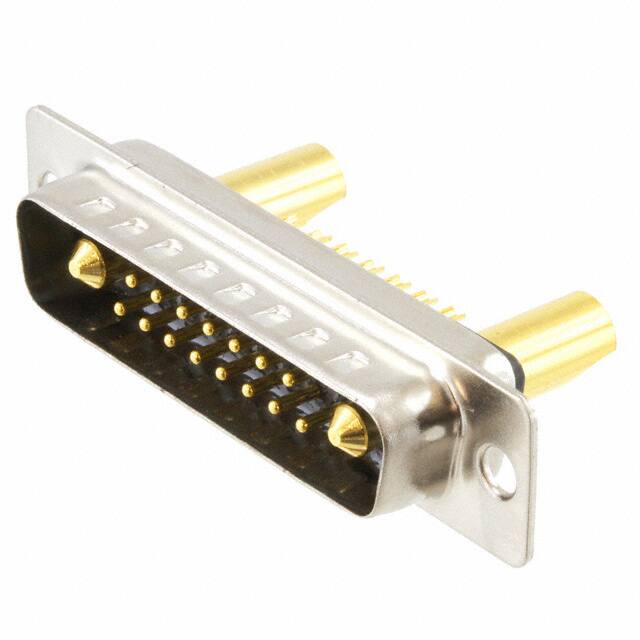

IP67 Male Mixed Contact D-Sub 17W2 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S17W2103L401
Gender:Plug
Series:680S POWER-D
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:40 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Power Wire Size:8 AWG
Termination Method:Solder Cup
Number of Positions:17 (15 Signal, 2 Power)
Signal Wire Size:20 AWG
SKU:TEX680S17W2103L401

Detailed Description

Introducing the 680S17W2103L401, an IP67 Male Mixed Contact D-Sub connector from the 680S POWER-D series. This rugged plug features a straight solder cup termination method and is designed for optimal performance in demanding environments. With 17 positions (15 signal, 2 power), it offers versatility for various applications. Gold flash contact plating ensures reliable conductivity, while a steel shell with nickel plating provides durability. Rated for 40A (power) and 5A (signal) at 300VAC, it meets stringent performance standards. RoHS compliant and suitable for use with 20 AWG signal and 8 AWG power wires, this connector is ideal for high-power and high-reliability applications. Upgrade your connectivity with the 680S17W2103L401.
