680S17W2203L401

TEX680S17W2203L401
Heilind Number:TEX680S17W2203L401
Manufacturer:NorComp
Manufacturer Number:680S17W2203L401
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

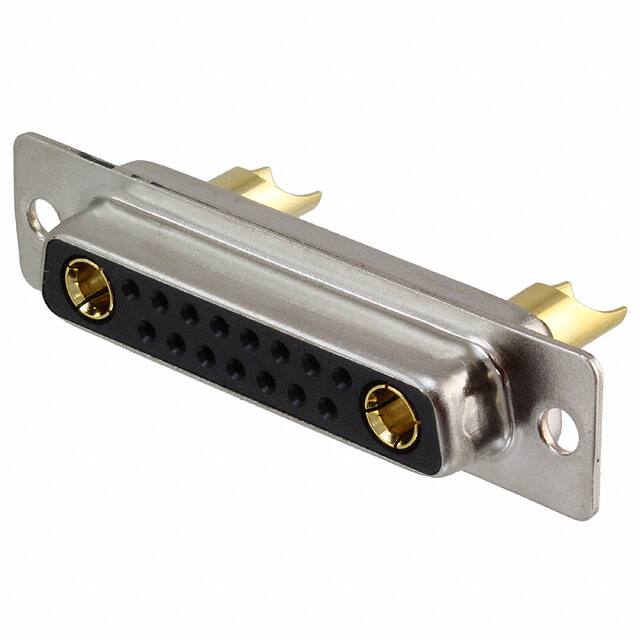

IP67 Female Mixed Contact D-Sub 17W2 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S17W2203L401
Gender:Receptacle
Series:680S POWER-D
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:40 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Power Wire Size:8 AWG
Termination Method:Solder Cup
Number of Positions:17 (15 Signal, 2 Power)
Signal Wire Size:20 AWG
SKU:TEX680S17W2203L401

Detailed Description

Introducing the IP67 Female Mixed Contact D-Sub 17W2 Position Straight Solder Cup Connector from our 680S POWER-D series. Designed for rugged environments, this receptacle features gold flash contact plating for optimal conductivity and durability. With 17 positions (15 signal, 2 power), it offers versatile connectivity for a wide range of applications. The straight solder cup termination method ensures secure and reliable connections, while the steel shell construction with nickel plating guarantees longevity. Rated for 40A (power) and 5A (signal) current, and 300VAC voltage, this connector is perfect for high-power and high-speed data transmission. RoHS compliant and suitable for power wire sizes up to 8 AWG and signal wire sizes up to 20 AWG, it meets stringent quality and environmental standards. Upgrade your connectivity solutions with the SEAL-D campaign's seal of quality, and trust in the acronym 680S17W2203L401 for top performance.
