680S3W3203L401

TEX680S3W3203L401
Heilind Number:TEX680S3W3203L401
Manufacturer:NorComp
Manufacturer Number:680S3W3203L401
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

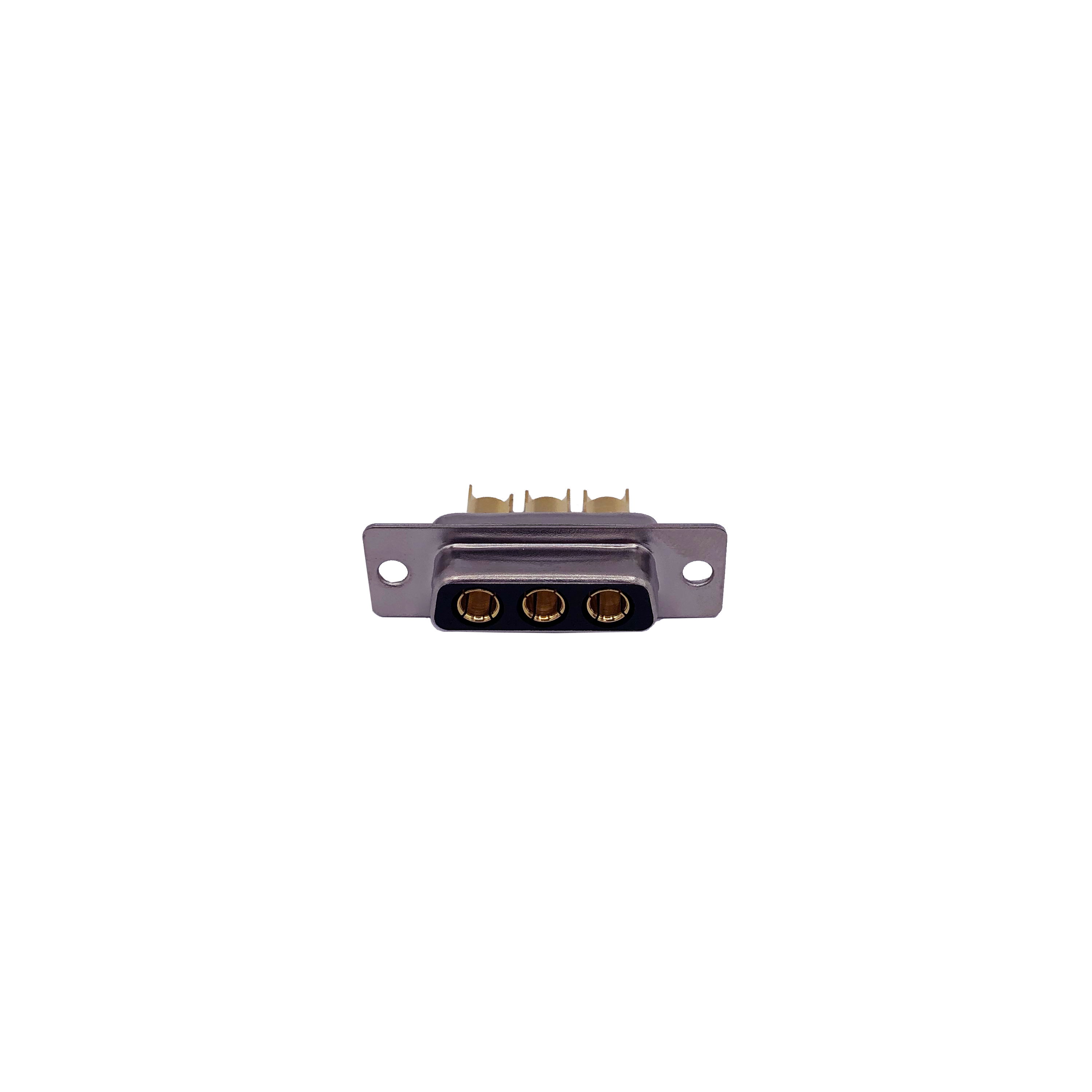

IP67 Female Mixed Contact D-Sub 3W3 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S3W3203L401
Series:680S POWER-D
Gender:Receptacle
Termination Method:Solder Cup
Contact Plating:Gold Flash
Mount Angle:Straight
Number of Positions:3 (Power)
Shell Material:Steel
Shell Finish:Nickel Plated
Current Rating:40 A
Power Wire Size:8 AWG
Voltage Rating:300 VAC
SKU:TEX680S3W3203L401

Detailed Description

The 680S3W3203L401 is a high-performance IP67 Female Mixed Contact D-Sub connector designed for rugged industrial applications. Featuring a straight solder cup termination method, this receptacle accommodates 3 power positions with gold flash contact plating for optimal conductivity. Constructed with a steel shell and nickel-plated finish, it ensures durability and reliable performance in harsh environments. With a current rating of 40 A and voltage rating of 300 VAC, this connector is suitable for high-power applications. RoHS compliant and suitable for use with 8 AWG power wire, it meets environmental standards while providing secure and efficient connectivity. The 680S POWER-D series, part of the SEAL-D campaign, offers superior sealing and protection. Perfect for IO and hi-rel applications, the 680S3W3203L401 is a dependable solution for demanding connectivity needs.
