680S5W1203L401

TEX680S5W1203L401
Heilind Number:TEX680S5W1203L401
Manufacturer:NorComp
Manufacturer Number:680S5W1203L401
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

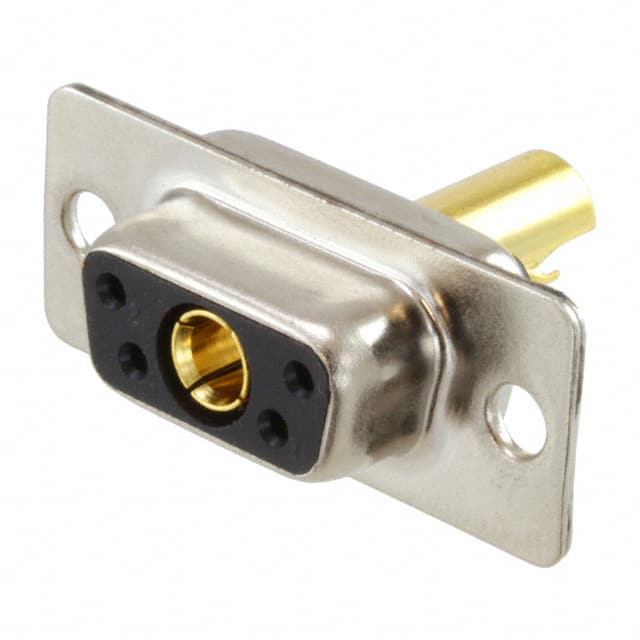

IP67 Female Mixed Contact D-Sub 5W1 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S5W1203L401
Gender:Receptacle
Series:680S POWER-D
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:40 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold Flash
Power Wire Size:8 AWG
Termination Method:Solder Cup
Number of Positions:5 (4 Signal, 1 Power)
Signal Wire Size:20 AWG
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
SKU:TEX680S5W1203L401

Detailed Description

The 680S5W1203L401 is an IP67-rated Female Mixed Contact D-Sub connector designed for demanding industrial environments. Featuring a straight solder cup termination method, it ensures secure and reliable connections. With a maximum operating temperature of 125°C and a minimum of -55°C, this connector is suitable for a wide range of applications. It offers 5 positions (4 signal, 1 power) and has a current rating of 40A for power and 5A for signal. Gold flash contact plating guarantees excellent conductivity, while the steel shell with nickel plating provides durability. RoHS compliant and with a voltage rating of 300VAC, this connector meets strict environmental and safety standards. Perfect for high-power and signal applications, it is part of the 680S POWER-D series, delivering exceptional performance and reliability.
