680S9W4103L201

TEX680S9W4103L201
Heilind Number:TEX680S9W4103L201
Manufacturer:NorComp
Manufacturer Number:680S9W4103L201
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

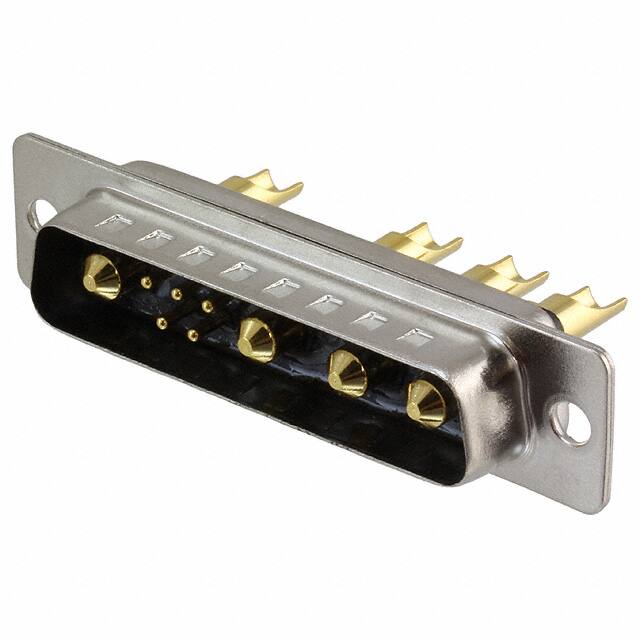

IP67 Male Mixed Contact D-Sub 9W4 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 680S9W4103L201
Series:680S POWER-D
Gender:Plug
Termination Method:Solder Cup
Contact Plating:Gold Flash
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Mount Angle:Straight
Number of Positions:9 (5 Signal, 4 Power)
Shell Material:Steel
Signal Wire Size:20 AWG
Shell Finish:Nickel Plated
Current Rating:20 A, 5 A
Power Wire Size:12 AWG
Voltage Rating:300 VAC
SKU:TEX680S9W4103L201

Detailed Description

Introducing the 680S9W4103L201, a rugged IP67-rated Male Mixed Contact D-Sub connector from the 680S POWER-D series. Designed for harsh environments, this plug features a straight solder cup termination method with gold flash contact plating for reliable signal and power transmission. With a wide operating temperature range of -55°C to 125°C, it is suitable for use in extreme conditions. The steel shell with nickel plating ensures durability, while the 9 positions (5 signal, 4 power) accommodate various connections. Rated for 20A (power) and 5A (signal) current, with a voltage rating of 300VAC, it meets high-performance standards. ROHS compliant and suitable for 20AWG (signal) and 12AWG (power) wire sizes, this connector is perfect for industrial, aerospace, and military applications. Whether you need a reliable solution for data transmission or power distribution, the 680S9W4103L201 is the ideal choice.
