684M17W2103L461

TEX684M17W2103L461
Heilind Number:TEX684M17W2103L461
Manufacturer:NorComp
Manufacturer Number:684M17W2103L461
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

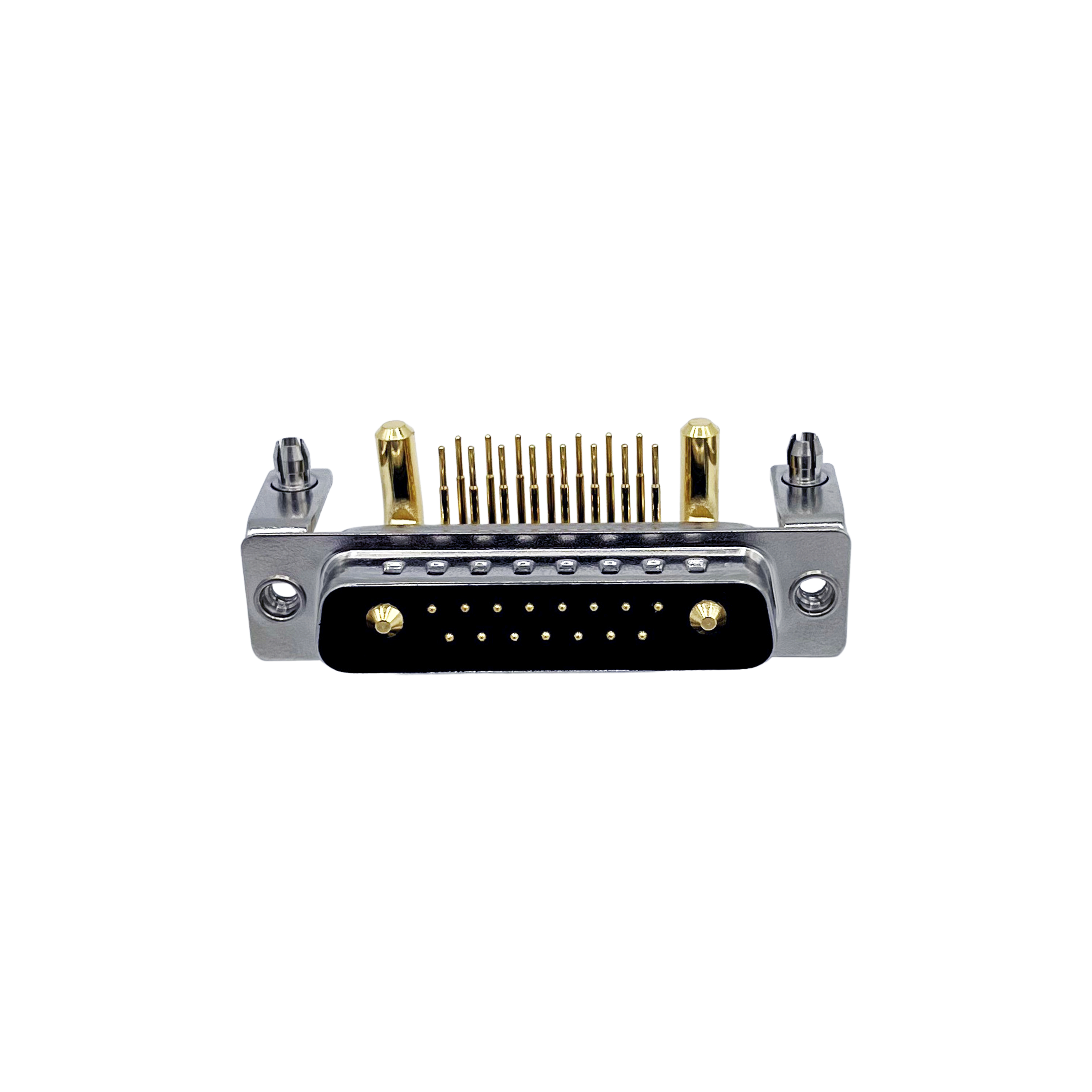

Male Mixed Contact D-Sub 17W2 Position Right Angle PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 684M17W2103L461
Series:684M POWER-D
Gender:Plug
Termination Method:Solder
Contact Plating:Gold Flash
Mount Angle:Right Angle
Number of Positions:17 (15 Signal, 2 Power)
Shell Material:Steel
Shell Finish:Nickel Plated
Current Rating:40 A, 5 A
Voltage Rating:300 VAC
SKU:TEX684M17W2103L461

Detailed Description

Introducing the 684M17W2103L461, a robust Male Mixed Contact D-Sub connector designed for high-performance applications. Featuring a right angle PCB Dip Solder termination method, this plug connector ensures secure and reliable connections. With 17 positions (15 Signal, 2 Power) and gold flash contact plating, it guarantees optimal signal transmission even in demanding environments. The durable steel shell with nickel plating offers excellent mechanical strength and corrosion resistance. Rated for a current of 40A (5A) and a voltage of 300VAC, it is suitable for power and data transmission. Fully RoHS compliant, this connector meets environmental standards. Perfect for use in industrial, aerospace, and military applications, the 684M17W2103L461 is a dependable connectivity solution.
