CDFR3W3113L212

TEXCDFR3W3113L212
Heilind Number:TEXCDFR3W3113L212
Manufacturer:NorComp
Manufacturer Number:CDFR3W3113L212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

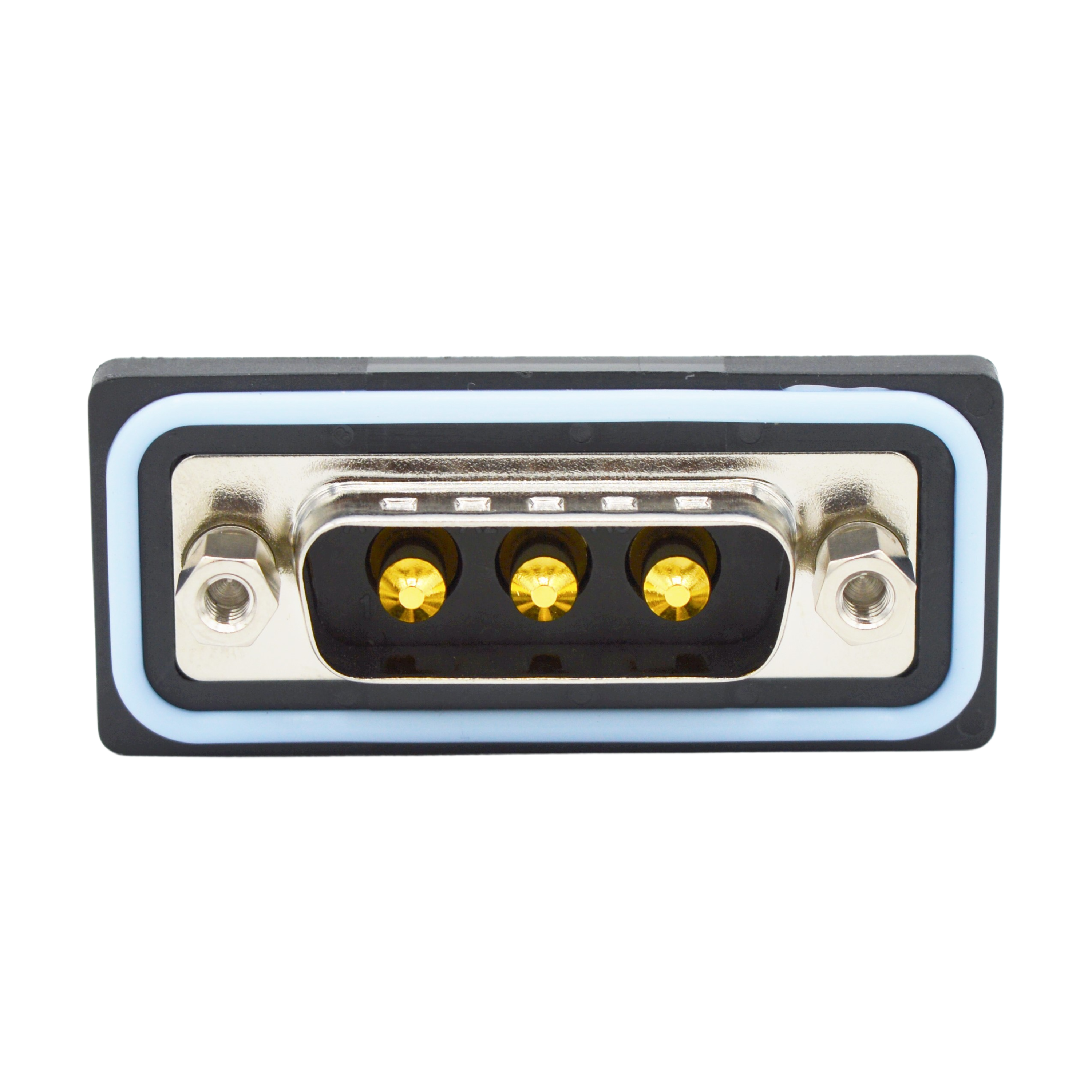

IP67 Male Mixed Contact D-Sub Flange Sealed 3W3 Position Right Angle PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp CDFR3W3113L212
Gender:Plug
Series:CDF
Mount Angle:Right Angle
Shell Finish:Nickel Plated
Current Rating:20 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold
Termination Method:Solder
Number of Positions:3 (Power)
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-25 °C
SKU:TEXCDFR3W3113L212

Detailed Description

Introducing the CDFR3W3113L212, a rugged IP67-rated Male Mixed Contact D-Sub Flange Connector designed for demanding industrial environments. This 3W3 Position Right Angle Plug features gold contact plating for optimal conductivity, ensuring reliable connections. With a wide operating temperature range from -25°C to 85°C, it can withstand harsh conditions. The solder termination method and steel shell construction with nickel plating offer durability and longevity. Suitable for power applications with a current rating of 20A and 5A at 300VAC, this connector guarantees high performance. Part of the CDF series and ROHS compliant, it meets industry standards for quality and environmental responsibility. Perfect for IO connectors and other high-reliability applications, the CDFR3W3113L212 is the ultimate solution for secure and efficient connectivity.
