CDFR7W2113L212

TEXCDFR7W2113L212
Heilind Number:TEXCDFR7W2113L212
Manufacturer:NorComp
Manufacturer Number:CDFR7W2113L212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

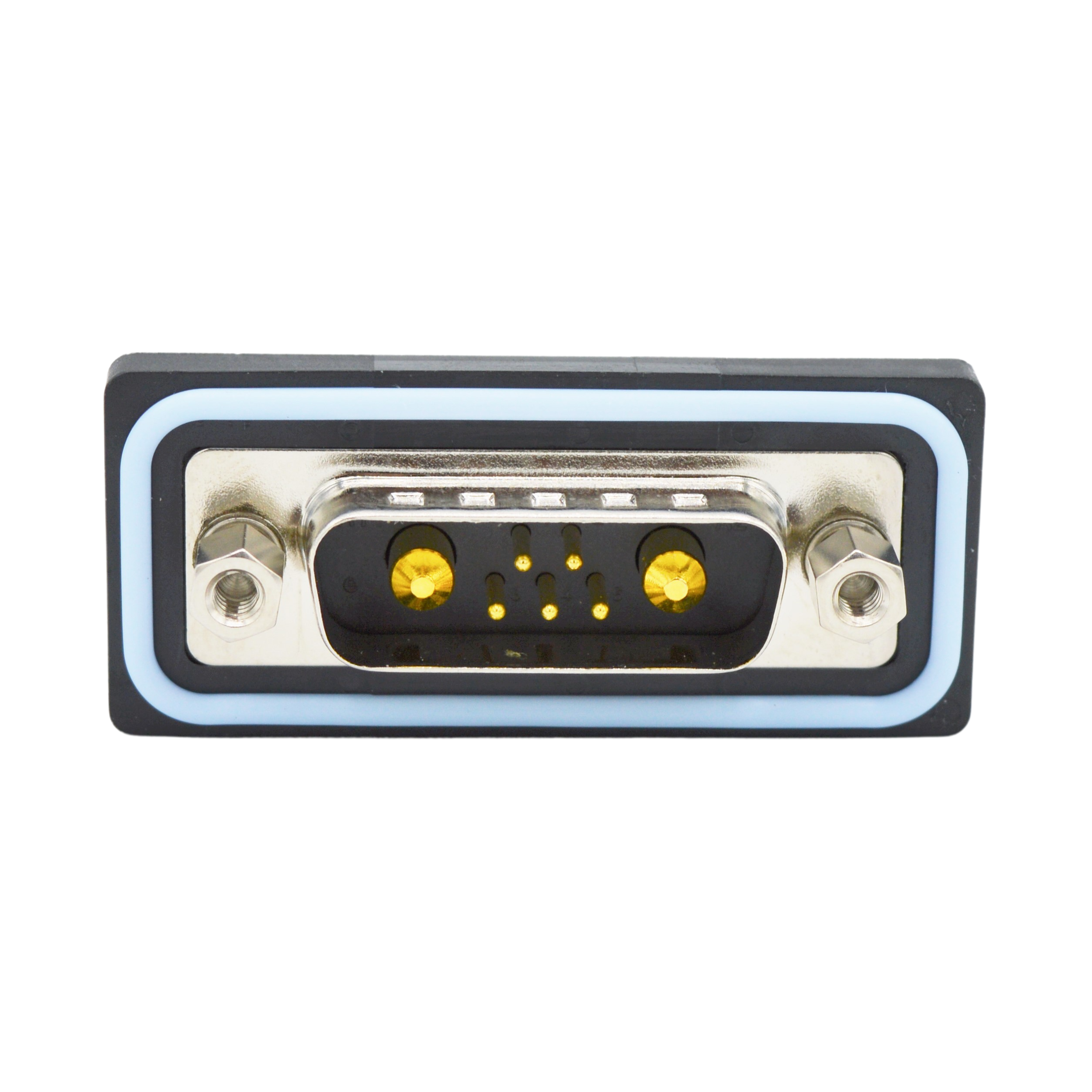

IP67 Male Mixed Contact D-Sub Flange Sealed 7W2 Position Right Angle PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp CDFR7W2113L212
Gender:Plug
Series:CDF
Mount Angle:Right Angle
Shell Finish:Nickel Plated
Current Rating:20 A, 5 A
Shell Material:Steel
Voltage Rating:300 VAC
Contact Plating:Gold
Termination Method:Solder
Number of Positions:7 (5 Signal, 2 Power)
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-25 °C
SKU:TEXCDFR7W2113L212

Detailed Description

Introducing the IP67 Male Mixed Contact D-Sub Flange Sealed Connector, part of the CDF series. This robust plug features 7W2 positions with a right-angle PCB dip solder termination method, making it ideal for secure and durable connectivity in demanding environments. With gold contact plating ensuring reliable signal transmission, this connector can handle a wide range of operating temperatures from -25°C to 85°C. Its steel shell with nickel plating offers enhanced durability, while the 5 signal and 2 power positions, each rated for 20A and 5A respectively, provide ample power and data transfer capabilities. Rated for 300VAC, this connector is suitable for various applications in the industrial and commercial sectors. The perfect choice for high-reliability connectivity needs, the CDFR7W2113L212 is a standout performer in the NANOOK campaign.
