| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2604-1107 |
| Series: | 2604 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 5 mm |
| Number of Poles: | 7 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 32 A |
| Voltage Rating: | 630 V |
| Conductor Size: | 24 - 12 AWG |
| Part Aliases: | 60325996 |
| SKU: | WAG2604-1107 |
2604-1107
| Heilind Number: | WAG2604-1107 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2604-1107 |
| ECAD Model: | |
Specifications
Detailed Description

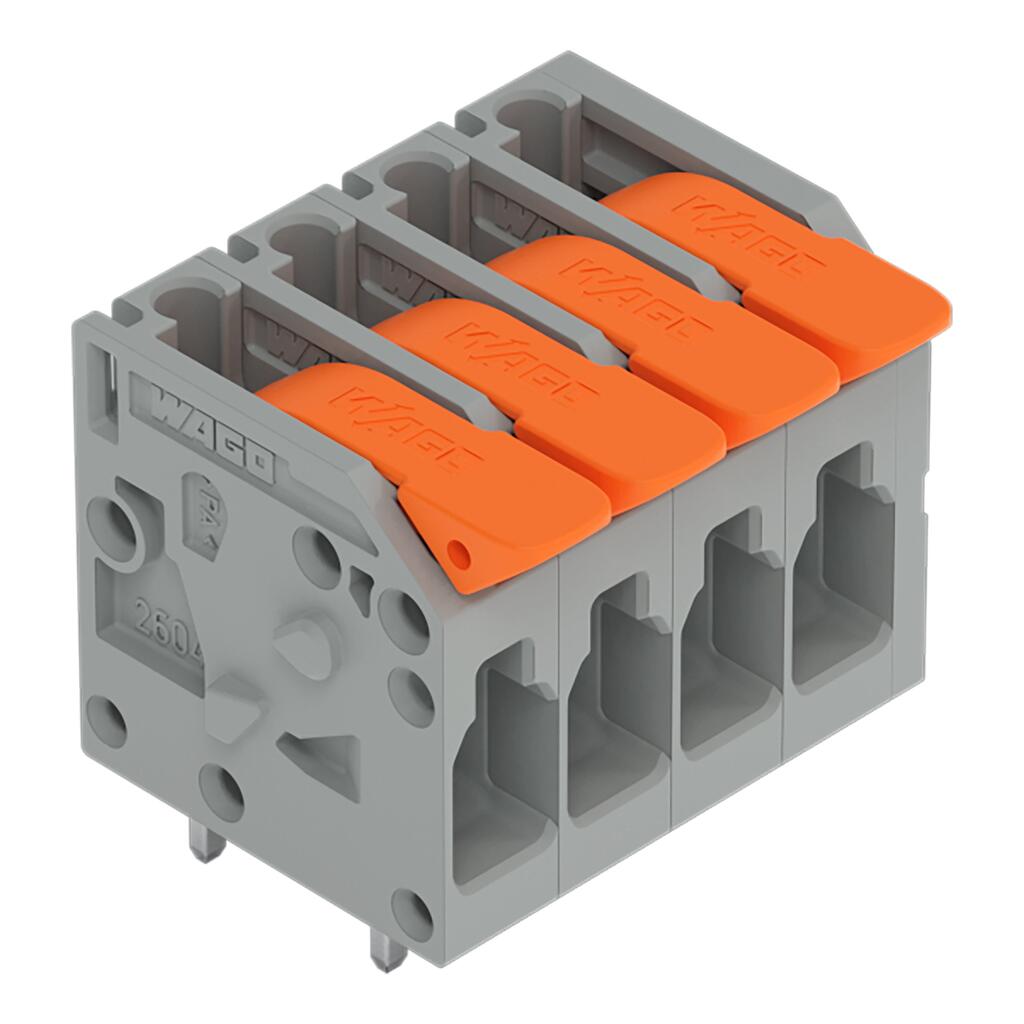

Introducing the 2604-1107 PCB Terminal Block, an essential component for efficient and reliable electrical connections in your projects. This high-quality terminal block, part of the 2604 series, features a durable Nylon housing and Electrolytic Copper contacts with Tin plating for optimal conductivity. With a wide operating temperature range of -60°C to 105°C, it ensures performance in diverse environments. The Push-In termination method and 5mm pitch make installation quick and easy, accommodating wire sizes from 24 to 12 AWG. Rated for 32A at 630V, it guarantees safe and secure connections. Its UL 94V-0 flammability rating and RoHS compliance further enhance its suitability for various applications. With 7 poles and 1 level, the 2604-1107 is a versatile solution for your PCB mounting needs. Trust in its quality and performance for seamless connectivity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2604-1107 |
| Other Names: | 60325996 |
