| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2604-3111 |
| Series: | 2604 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 5 mm |
| Number of Poles: | 11 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 32 A |
| Voltage Rating: | 630 V |
| Conductor Size: | 24 - 12 AWG |
| Part Aliases: | 60325988 |
| SKU: | WAG2604-3111 |
2604-3111
| Heilind Number: | WAG2604-3111 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2604-3111 |
| ECAD Model: | |
Specifications
Detailed Description

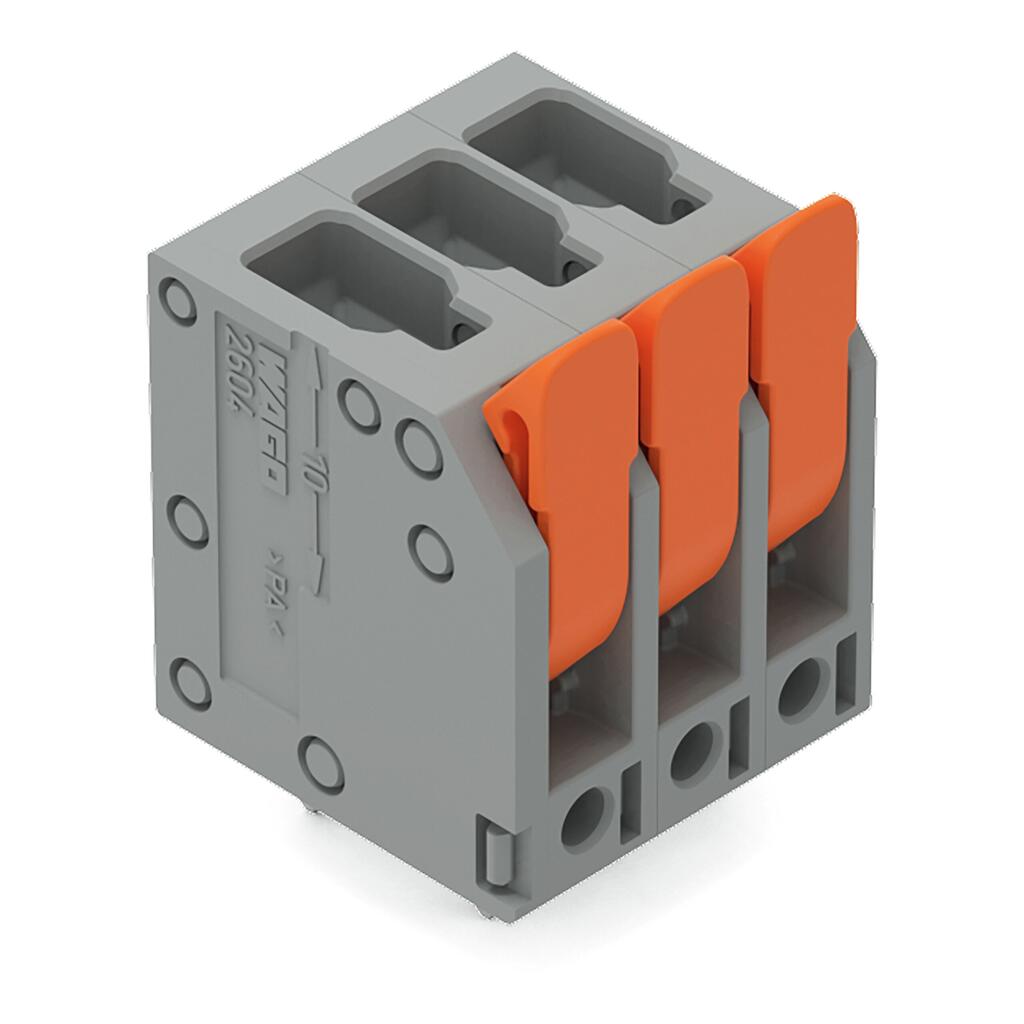

Introducing the 2604-3111, a high-performance PCB TERMINAL BLOCK designed for seamless connectivity in electronic applications. With a durable Nylon housing and reliable Electrolytic Copper contacts plated with Tin, this terminal block ensures optimal conductivity and longevity. Featuring a convenient Push-In termination method, installation is quick and easy. The 5mm pitch and 11 poles provide ample space for wire connections, accommodating 24-12 AWG wire sizes. With a wide operating temperature range of -60°C to 105°C and a flammability rating of UL 94V-0, this terminal block is suitable for a variety of environments. Rated for 32A and 630V, it guarantees safe and efficient power transmission. Ideal for use in hi-rel applications, the 2604-3111 is a reliable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2604-3111 |
| Other Names: | 60325988 |
