| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2604-3307 |
| Series: | 2604 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 7.5 mm |
| Number of Poles: | 7 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 32 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 24 - 12 AWG |
| Part Aliases: | 60326009 |
| SKU: | WAG2604-3307 |
2604-3307
| Heilind Number: | WAG2604-3307 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2604-3307 |
| ECAD Model: | |
Specifications
Detailed Description

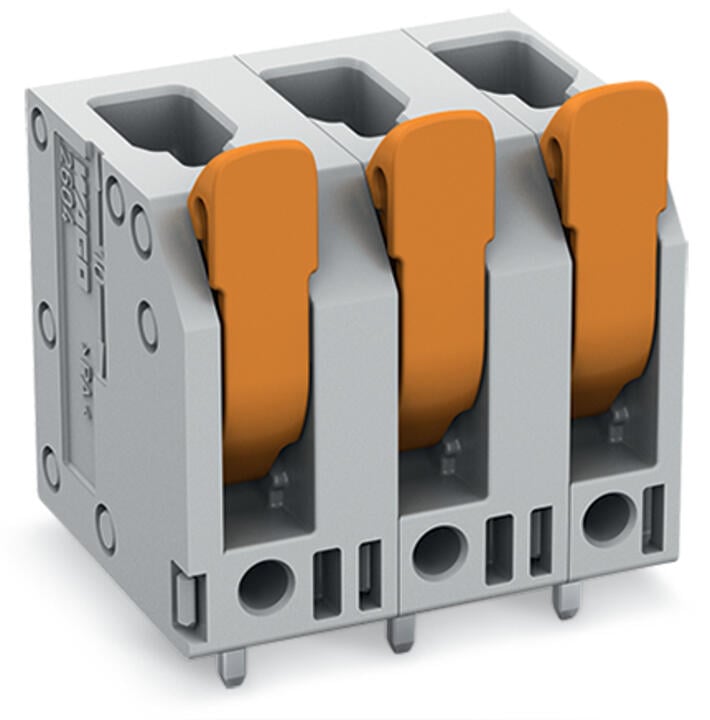

Introducing the 2604-3307 PCB TERMINAL BLOCK, a crucial component for reliable and efficient electrical connections. Designed for secure Through Hole mounting, this terminal block features a Push-In termination method for easy installation. Constructed with durable Nylon housing and Electrolytic Copper contacts plated with Tin, it ensures robust performance even in harsh environments. With a wide operating temperature range of -60°C to 105°C, it is suitable for various applications. The 7.5mm pitch, 7 poles, and 1 level configuration offer versatility in wiring. In compliance with UL 94V-0 flammability rating, it guarantees safety. Rated for 32A and 1000V, it accommodates wire sizes ranging from 24 to 12 AWG. Trust the 2604-3307 for high-quality and dependable connectivity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2604-3307 |
| Other Names: | 60326009 |
