| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2604-3509 |
| Series: | 2604 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 11.5 mm |
| Number of Poles: | 9 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 32 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 24 - 12 AWG |
| Part Aliases: | 60326033 |
| SKU: | WAG2604-3509 |
2604-3509
| Heilind Number: | WAG2604-3509 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2604-3509 |
| ECAD Model: | |
Specifications
Detailed Description

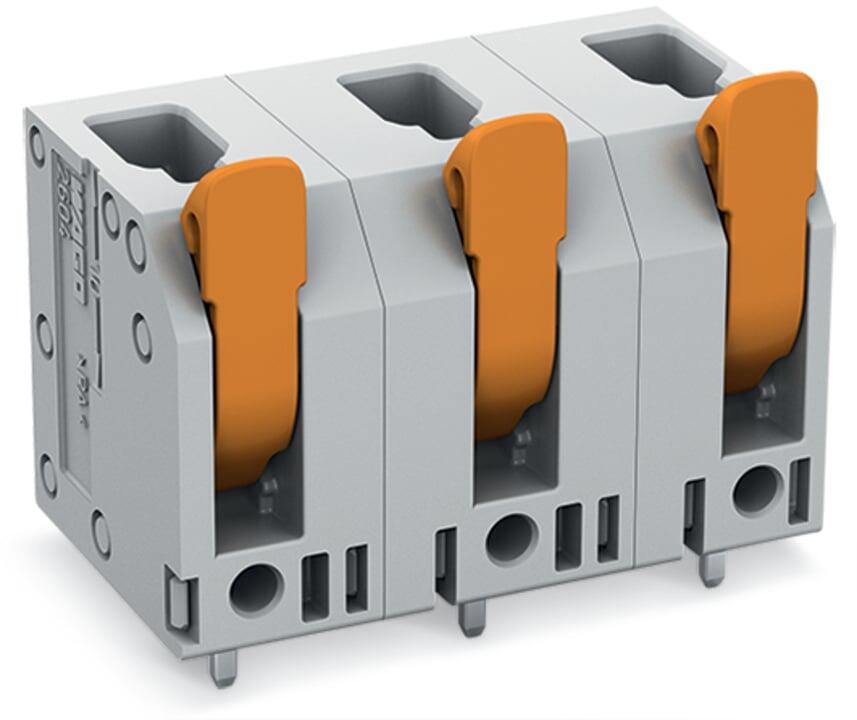

Introducing the 2604-3509 PCB TERMINAL BLOCK, a crucial component for reliable and secure electrical connections in your projects. Made of durable Nylon with a UL 94V-0 flammability rating, this terminal block ensures safety and performance. Featuring a Push-In termination method and Tin-plated Electrolytic Copper contacts, it guarantees easy installation and excellent conductivity. With a maximum operating temperature of 105°C and a wide wire size compatibility ranging from 24 to 12 AWG, it is suitable for various applications. The 11.5mm pitch, 9 poles, and 1 level design offer flexibility and efficiency in your PCB assembly. Rated for 32A and 1000V, it provides ample power handling capability. Trust in the 2604-3509 for dependable and high-quality connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2604-3509 |
| Other Names: | 60326033 |
