| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2606-1357 |
| Series: | 2606 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 12.5 mm |
| Number of Poles: | 7 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 8 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 41 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 24 - 8 AWG |
| Part Aliases: | 60399036 |
| SKU: | WAG2606-1357 |
2606-1357
| Heilind Number: | WAG2606-1357 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2606-1357 |
| ECAD Model: | |
Specifications
Detailed Description

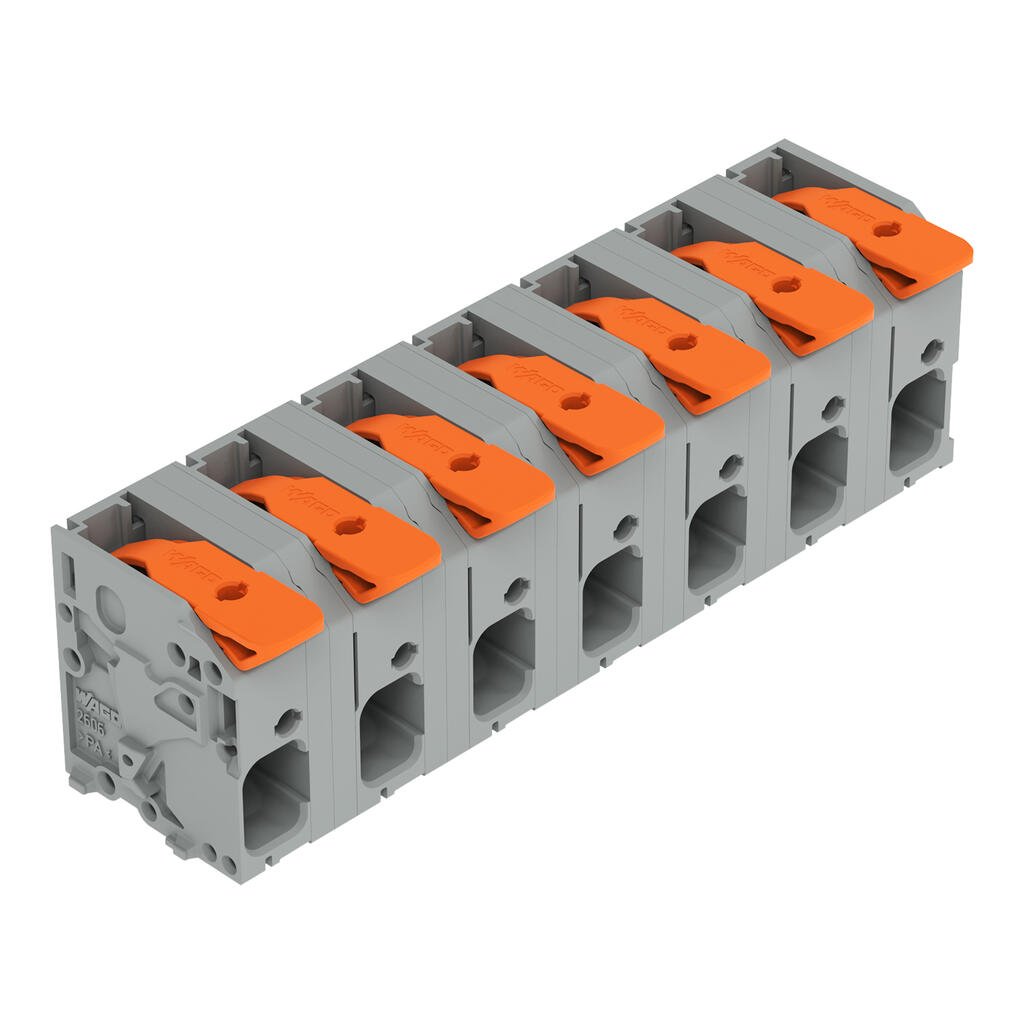

Introducing the 2606-1357, a high-performance terminal block designed for reliable through-hole mounting in electronic applications. Featuring a durable nylon housing and electrolytic copper contacts with tin plating, this terminal block ensures secure and efficient connections. With a wide operating temperature range of -60°C to 105°C, it is suitable for use in various environments. The 12.5mm pitch accommodates up to 7 poles in a single level, offering versatility in connectivity. Rated for 41A and 1000V, it meets stringent safety standards. The UL 94V-0 flammability rating guarantees peace of mind. Suitable for wire sizes ranging from 24 to 8 AWG, this gray-colored terminal block is a reliable choice for your PCB mounting needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2606-1357 |
| Other Names: | 60399036 |
