| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2616-1104/020-000 |
| Series: | 2616 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 10 mm |
| Number of Poles: | 4 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 18 - 4 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 76 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 18 - 4 AWG |
| Part Aliases: | 60360500 |
| SKU: | WAG2616-1104/020-000 |
2616-1104/020-000
| Heilind Number: | WAG2616-1104/020-000 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2616-1104/020-000 |
| ECAD Model: | |
Specifications
Detailed Description

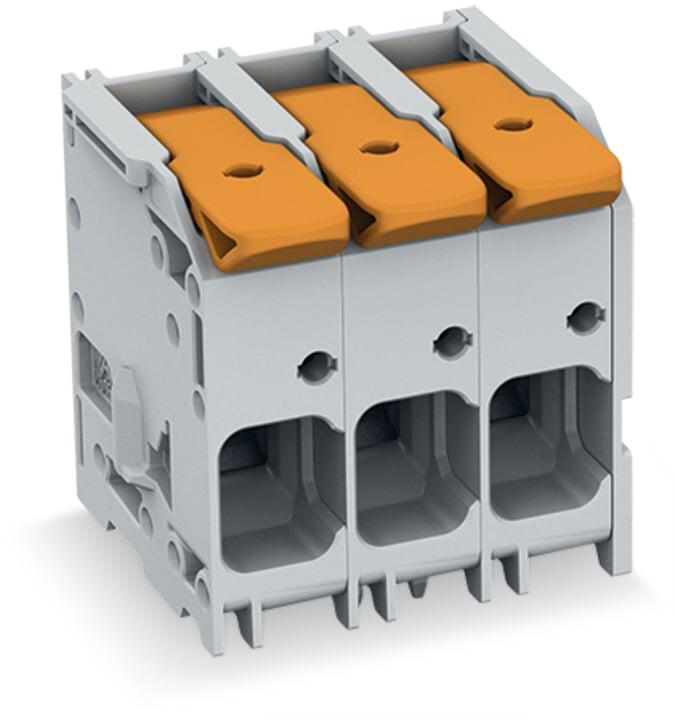

Introducing the 2616-1104/020-000 PCB TERMINAL BLOCK, a vital component for efficient and secure electrical connections. Crafted with durable Nylon housing and featuring a convenient Through Hole mount type, this terminal block ensures stability in any application. Its Push-In termination method, along with Electrolytic Copper contact material plated with Tin, guarantees reliable conductivity. With a wide operating temperature range of -35°C to 60°C, it is suitable for various environments. The 10mm pitch, 4 poles, and 1 level design offer versatility in connectivity. Certified with UL 94V-0 flammability rating, it guarantees safety. Accommodating wire sizes from 18 to 4 AWG, this terminal block can handle high current and voltage ratings of 76A and 1000V, respectively. Trust in its quality and performance for your connector needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2616-1104/020-000 |
| Other Names: | 60360500 |
