| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2624-1506 |
| Series: | 2624 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 11.5 mm |
| Number of Poles: | 6 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 10 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 41 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 24 - 10 AWG |
| Part Aliases: | 60329588 |
| SKU: | WAG2624-1506 |
2624-1506
| Heilind Number: | WAG2624-1506 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2624-1506 |
| ECAD Model: | |
Specifications
Detailed Description

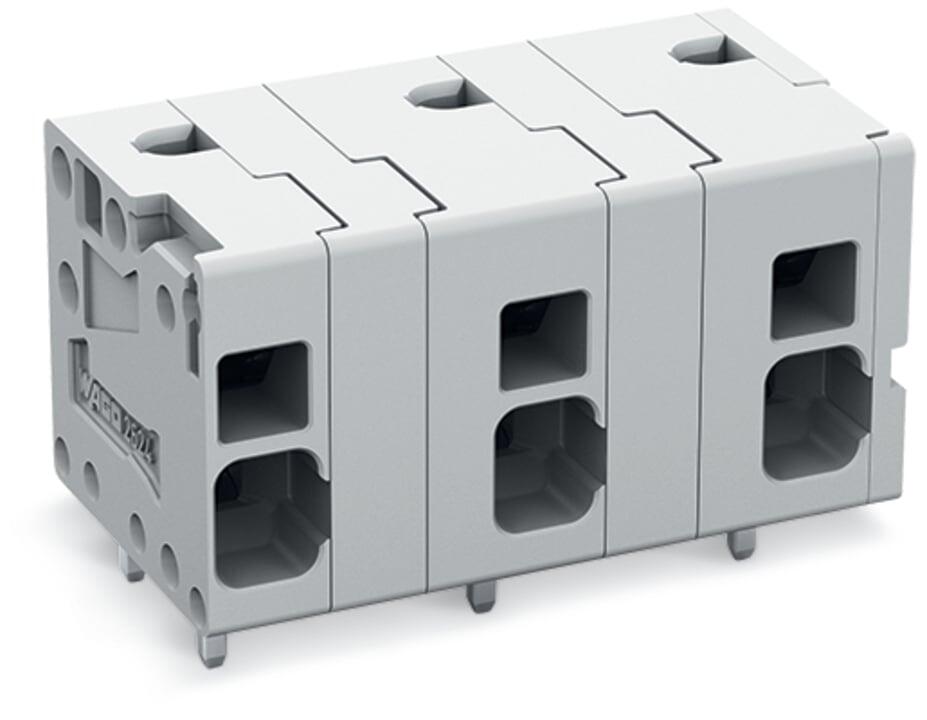

Introducing the PCB Terminal Block, part of the 2624 series. This essential connector features a durable Nylon housing in a sleek Gray color, designed for secure Through Hole mounting. With a Push-In termination method and Electrolytic Copper contacts plated with Tin, it ensures reliable conductivity. Operating efficiently in a wide temperature range from -60 °C to 105 °C, it is suitable for various environments. The block accommodates 6 poles in 1 level, with a pitch of 11.5 mm, and supports wire sizes ranging from 24 to 10 AWG. Meeting UL 94V-0 flammability standards, it guarantees safety. Rated for 41 A and 1000 V, it is ideal for high-power applications. Trust in the quality and performance of this Terminal Block for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2624-1506 |
| Other Names: | 60329588 |
