| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2626-3356 |
| Series: | 2626 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 12.5 mm |
| Number of Poles: | 6 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 8 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 48 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 24 - 8 AWG |
| Part Aliases: | 60409086 |
| SKU: | WAG2626-3356 |
2626-3356
| Heilind Number: | WAG2626-3356 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2626-3356 |
| ECAD Model: | |
Specifications
Detailed Description

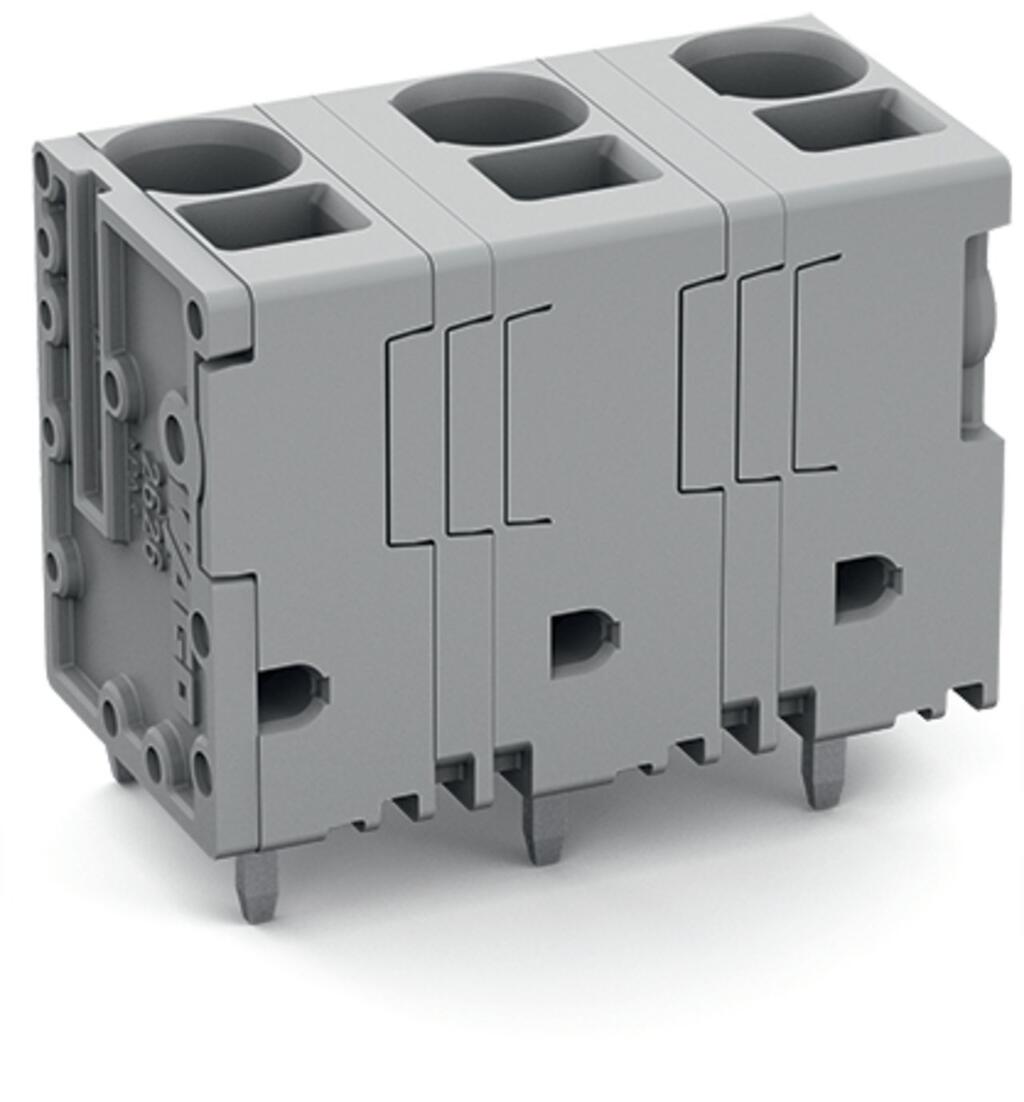

The 2626-3356 Terminal Block, part of the 2626 series, offers reliable connectivity in a durable Nylon housing with a Gray color. Featuring a Through Hole mount type and Push-In termination method, it ensures secure and efficient wire connections. The Electrolytic Copper contacts with Tin plating provide excellent conductivity and corrosion resistance. With a wide operating temperature range of -60°C to 105°C, it is suitable for various environments. This 6-pole terminal block accommodates wire sizes ranging from 24 to 8 AWG, with a pitch of 12.5mm. It is UL 94V-0 rated for safety and can handle a maximum current of 48A and voltage of 1000V. Ideal for high-performance applications in the field of connectors and PCB mount terminal blocks, the 2626-3356 ensures dependable electrical connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2626-3356 |
| Other Names: | 60409086 |
