| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2636-1101 |
| Series: | 2636 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Pitch: | 10 mm |
| Number of Poles: | 1 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 18 - 4 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 76 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 18 - 4 AWG |
| Part Aliases: | 60340961 |
| SKU: | WAG2636-1101 |

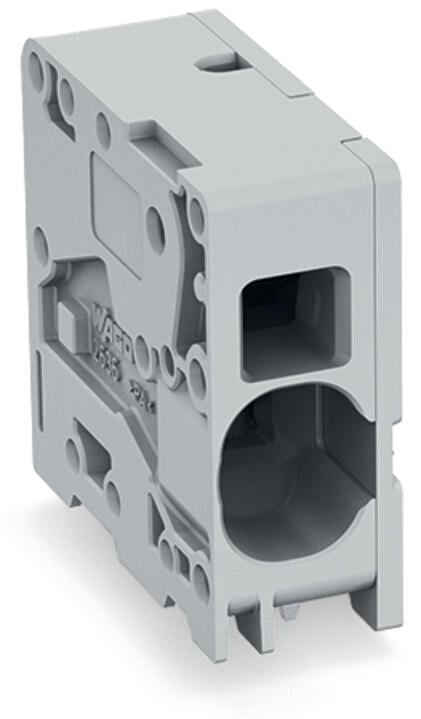

2636-1101
| Heilind Number: | WAG2636-1101 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2636-1101 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 2636-1101 PCB TERMINAL BLOCK, a high-performance connector designed for efficient and reliable power distribution in electronic assemblies. Featuring a durable Nylon housing and through-hole mount type, this terminal block ensures secure attachment to PCBs. The push-in termination method and electrolytic copper contacts with tin plating guarantee fast and stable wire connections, accommodating wire sizes from 18 to 4 AWG. With a pitch of 10mm and a current rating of 76A at 1000V, it offers ample power handling capabilities. Its UL 94V-0 flammability rating and RoHS compliance ensure safety and environmental responsibility. Ideal for use in various applications, this terminal block is a dependable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2636-1101 |
| Other Names: | 60340961 |
