| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2636-1355 |
| Series: | 2636 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Pitch: | 15 mm |
| Number of Poles: | 5 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 18 - 4 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 76 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 18 - 4 AWG |
| Part Aliases: | 60398913 |
| SKU: | WAG2636-1355 |
2636-1355
| Heilind Number: | WAG2636-1355 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2636-1355 |
| ECAD Model: | |
Specifications
Detailed Description

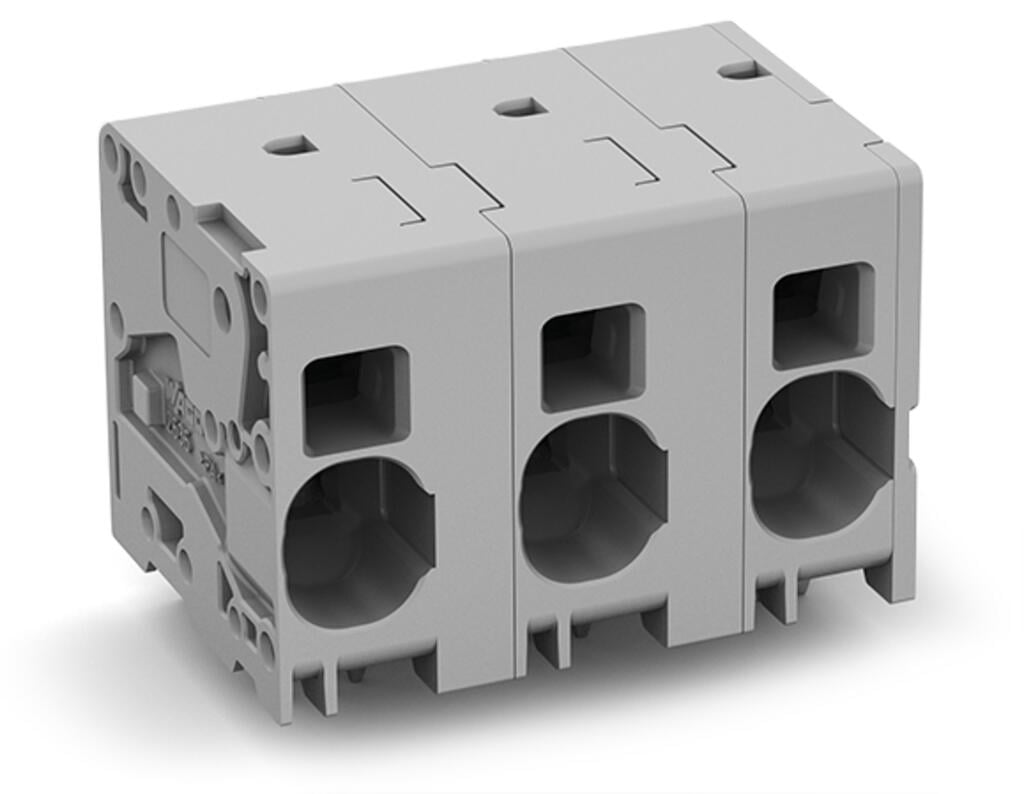

Introducing the 2636-1355 PCB Mount Terminal Block, a versatile and reliable connectivity solution for your electronic projects. With its durable Nylon housing and Through Hole mount type, this terminal block ensures secure and stable connections. The Push-In termination method simplifies installation, while the Electrolytic Copper contacts with Tin plating guarantee excellent conductivity. Operating seamlessly in temperatures ranging from -60°C to 105°C, and meeting UL 94V-0 flammability standards, it offers peace of mind in various environments. With a pitch of 15mm, 5 poles, and 1 level, it accommodates multiple wire sizes (18-4 AWG) and is rated for 76A and 1000V. Trust in the 2636-1355 for efficient and safe power distribution in your designs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2636-1355 |
| Other Names: | 60398913 |
