| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2706-156 |
| Series: | 2706 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Cage Clamp |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Pitch: | 7.5 mm |
| Number of Poles: | 6 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 20 - 10 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 41 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 20 - 10 AWG |
| Part Aliases: | 27060156 |
| SKU: | WAG2706-156 |
2706-156
| Heilind Number: | WAG2706-156 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2706-156 |
| ECAD Model: | |
Specifications
Detailed Description

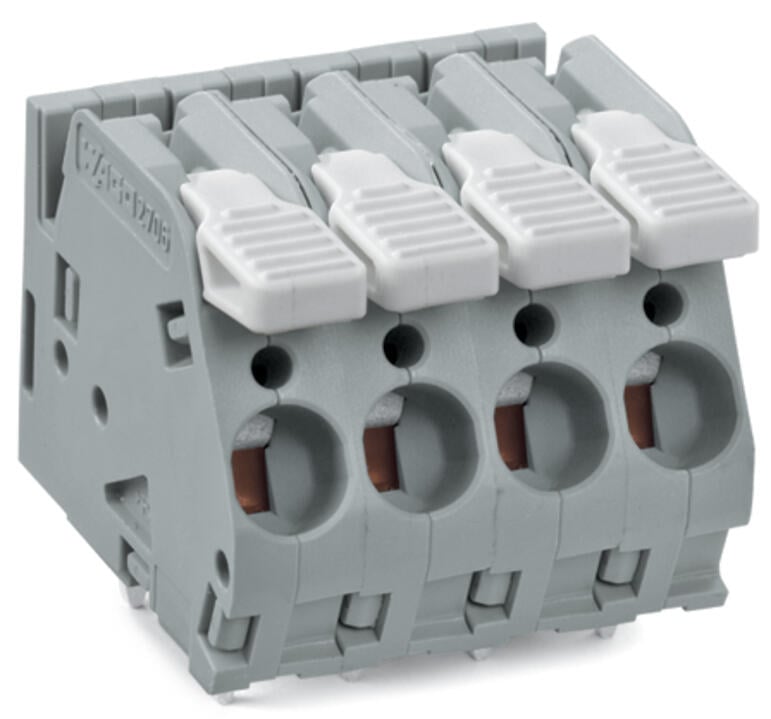

Introducing the 2706-156, a high-performance PCB TERMINAL BLOCK designed for seamless connectivity in industrial applications. Featuring a rugged Nylon housing and Cage Clamp termination method, this terminal block ensures secure and reliable connections. The contact material of Electrolytic Copper with Tin plating offers excellent conductivity and corrosion resistance. With a pitch of 7.5mm, 6 poles, and 1 level, it is ideal for accommodating multiple wires. The Gray housing color, along with UL 94V-0 flammability rating, guarantees safety and durability. Supporting wire sizes from 20 to 10 AWG, and with a current rating of 41A and voltage rating of 1000V, it meets the demands of high-power systems. Trust in the 2706-156 for efficient and robust PCB mounting solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2706-156 |
| Other Names: | 27060156 |
