| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2706-202 |
| Series: | 2706 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Cage Clamp |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Pitch: | 10 mm |
| Number of Poles: | 2 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 20 - 10 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 41 A |
| Voltage Rating: | 1000 V |
| Conductor Size: | 20 - 10 AWG |
| Part Aliases: | 27060202 |
| SKU: | WAG2706-202 |
2706-202
| Heilind Number: | WAG2706-202 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2706-202 |
| ECAD Model: | |
Specifications
Detailed Description

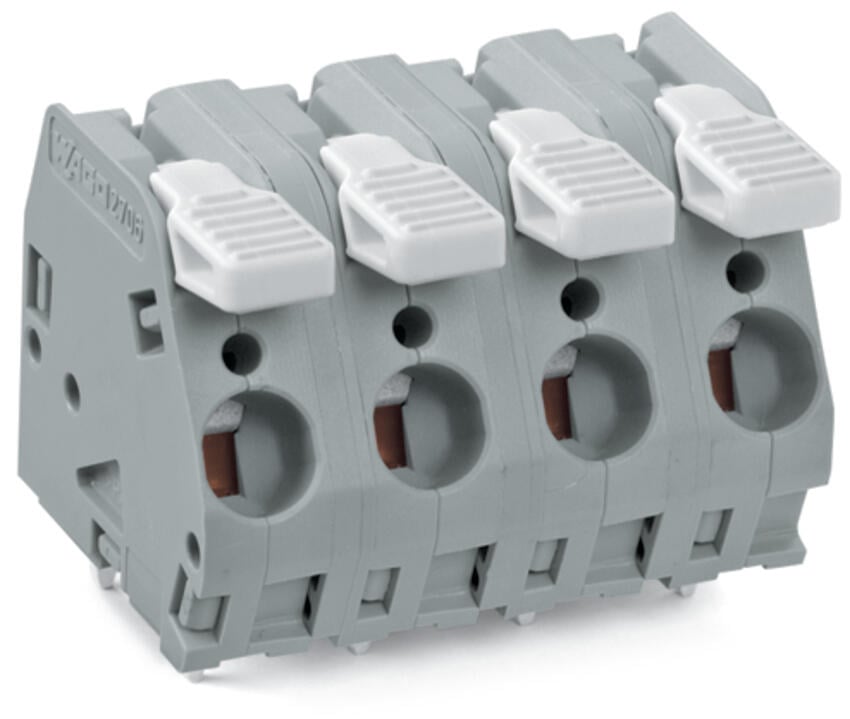

Introducing the 2706-202 PCB TERMINAL BLOCK, a reliable and high-performance connectivity solution for your electronic projects. This terminal block, part of the 2706 series, features a durable Nylon housing and Through Hole mount type, ensuring secure and stable installation. With Cage Clamp termination method and Electrolytic Copper contacts plated with Tin, it guarantees excellent conductivity and corrosion resistance. The 10mm pitch, 2 poles, and 1 level design offer versatility in wiring configurations. In a sleek Gray housing with UL 94V-0 flammability rating, it meets stringent safety standards. Rated for 41A and 1000V, with wire size compatibility ranging from 20 to 10 AWG, it is suitable for a wide range of applications. Trust in the 2706-202 for efficient and dependable connections in your designs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2706-202 |
| Other Names: | 27060202 |
