| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 805-314 |
| Series: | 805 |
| Housing Material: | Nylon |
| Mount Type: | Through Hole |
| Termination Method: | Push-In |
| Contact Material: | Electrolytic Copper |
| Contact Plating: | Tin |
| Pitch: | 3.5 mm |
| Number of Poles: | 14 |
| Number of Levels: | 1 |
| Housing Color: | Gray |
| Wire Size: | 24 - 16 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 17.5 A |
| Voltage Rating: | 630 V |
| Conductor Size: | 24 - 16 AWG |
| Part Aliases: | 8050314 |
| SKU: | WAG805-314 |
805-314
| Heilind Number: | WAG805-314 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 805-314 |
| ECAD Model: | |
Specifications
Detailed Description

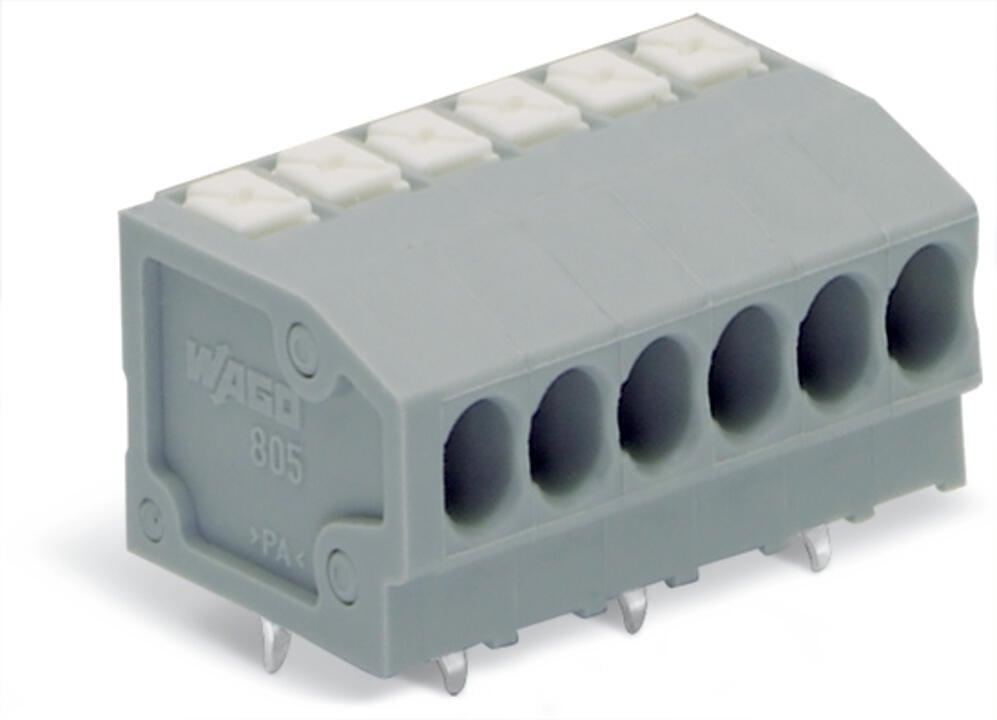

Introducing the 805-314 PCB TERMINAL BLOCK, a versatile connectivity solution for your electronic projects. Constructed with durable Nylon housing and featuring a Through Hole mount type, this terminal block ensures secure and reliable connections. The Push-In termination method allows for easy and efficient installation, while the Electrolytic Copper contacts with Tin plating guarantee excellent conductivity. With a pitch of 3.5mm and 14 poles, it accommodates multiple wires with ease. Its UL 94V-0 flammability rating and high current and voltage ratings of 17.5A and 630V, respectively, make it suitable for a wide range of applications. Trust in the 805-314 for efficient and safe PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 805-314 |
| Other Names: | 8050314 |
