| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | American Zettler |
| Manufacturer Part Number: | American Zettler AZ822-2C-24DSE |
| Sealed: | Yes |
| Series: | AZ822 |
| Coil Type: | Non-Latching |
| Mount Type: | Through Hole |
| Coil Voltage: | 24 VDC |
| Release Time: | 2 ms |
| Contact Method: | Bifurcated |
| Operating Time: | 5 ms |
| Coil Resistance: | 3840 Ohm |
| Contact Material: | Palladium Silver |
| Power Consumption: | 74 mW |
| Switching Voltage: | 250 VAC |
| Contact Termination: | Solder |
| Contact Configuration: | DPDT |
| Contact Current Rating: | 2 A |
| Maximum Operating Temperature: | 90 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | ZTRAZ822-2C-24DSE |

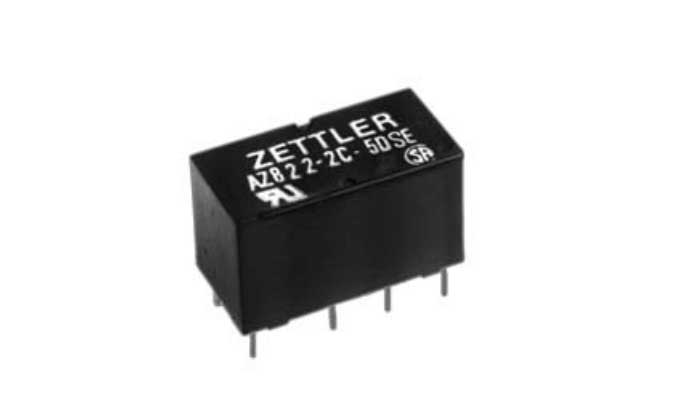

AZ822-2C-24DSE
| Heilind Number: | ZTRAZ822-2C-24DSE |
| Manufacturer: | American Zettler |
| Manufacturer Number: | AZ822-2C-24DSE |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the AZ822 Series Through Hole Relay, SKU AZ822-2C-24DSE, designed for reliable signal and communication relay applications. Featuring Palladium Silver contacts and a sealed construction, this DPDT relay ensures excellent conductivity and durability in harsh environments. With a coil voltage of 24VDC and a coil resistance of 3840 Ohm, it offers efficient power consumption at 74mW. Operating smoothly between -55°C to 90°C, it guarantees optimal performance in a wide range of temperatures. The bifurcated contact method and solder termination make for easy installation. RoHS compliant and with a switching voltage of 250VAC, this relay meets international quality standards. Trust the AZ822-2C-24DSE for seamless relay functionality in your hi-rel applications.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 04/01/2012 | add 24V coil to ultra sensitive /data sheet | N/A | |||
