1-1513472-9

AMP1_1513472_9
Heilind Number:AMP1-1513472-9
Manufacturer:TE Connectivity
Manufacturer Number:1-1513472-9
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

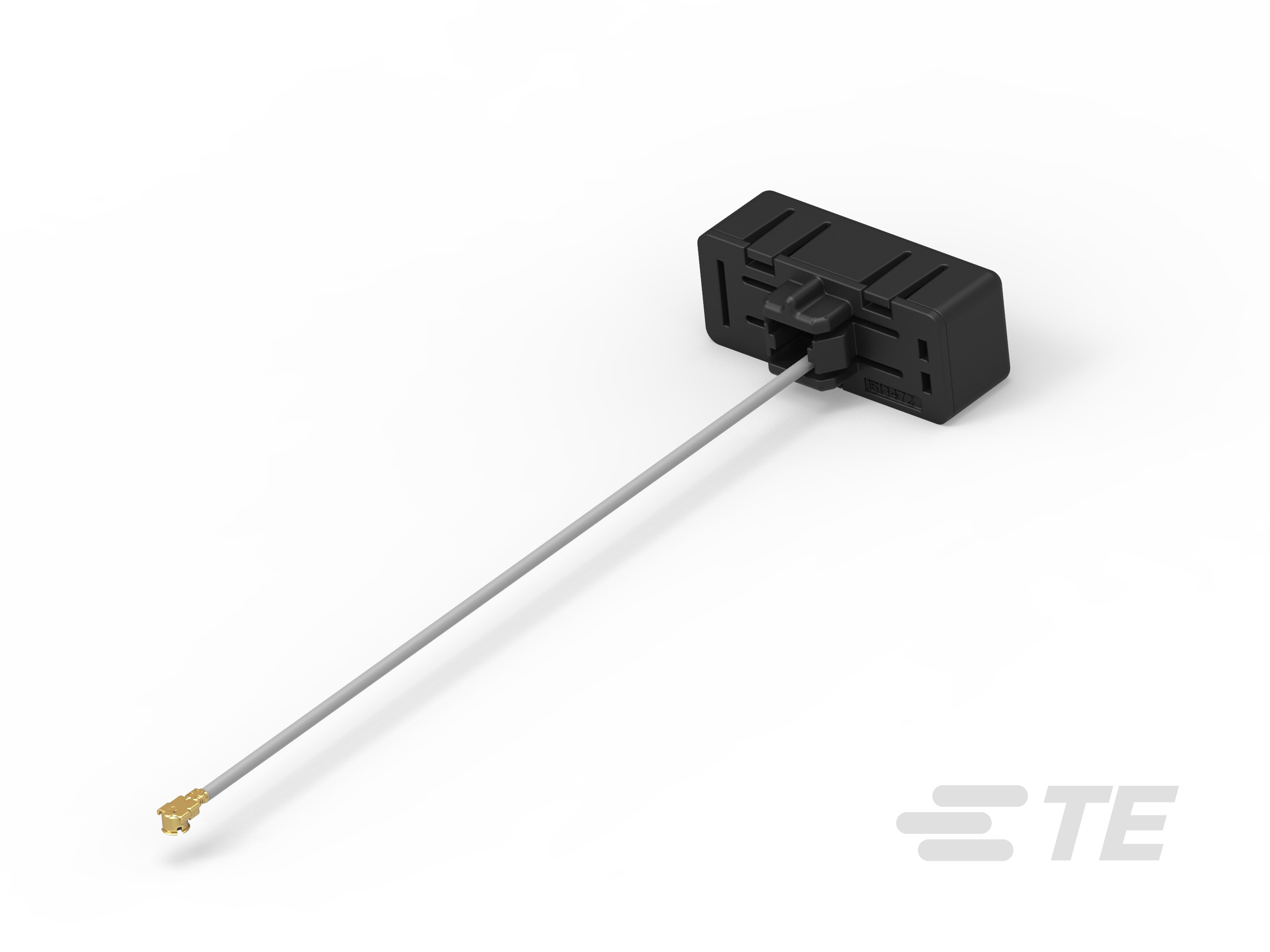

Stamped Metal Antenna, Dual Band, Bluetooth / Wi-Fi, External Mount, Snap-In, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1513472-9
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Snap In
VSWR:3:1
Antenna Type:Stamped Metal
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2585 MHz, 5850 MHz
Directionality:Omnidirectional
Frequency Range:2550 - 2620 MHz, 5500 - 6200 MHz
Gain:3 dB
SKU:AMP1-1513472-9

Detailed Description

Enhance your wireless connectivity with this Dual Band Stamped Metal Antenna, designed for Bluetooth and Wi-Fi applications. With a 3 dB gain and omnidirectional directionality, it ensures reliable signal transmission. Featuring a convenient snap-in mounting style and MHF4 termination, it's easy to install on external devices. Operating at frequencies ranging from 2550 to 2620 MHz and 5500 to 6200 MHz, it covers a wide spectrum for seamless communication. Compliant with ZigBee, Bluetooth, and various 802.11 protocols, it's versatile for different wireless standards. With a VSWR of 3:1 and impedance of 50 Ω, it offers efficient signal transfer. Perfect for antennas, passives, and other applications requiring high-performance wireless reception.
