1-1546307-0

AMP1-1546307-0
Heilind Number:AMP1-1546307-0
Manufacturer:TE Connectivity
Manufacturer Number:1-1546307-0
Datasheet:Drawing
ECAD Model:
3D Model

Description:

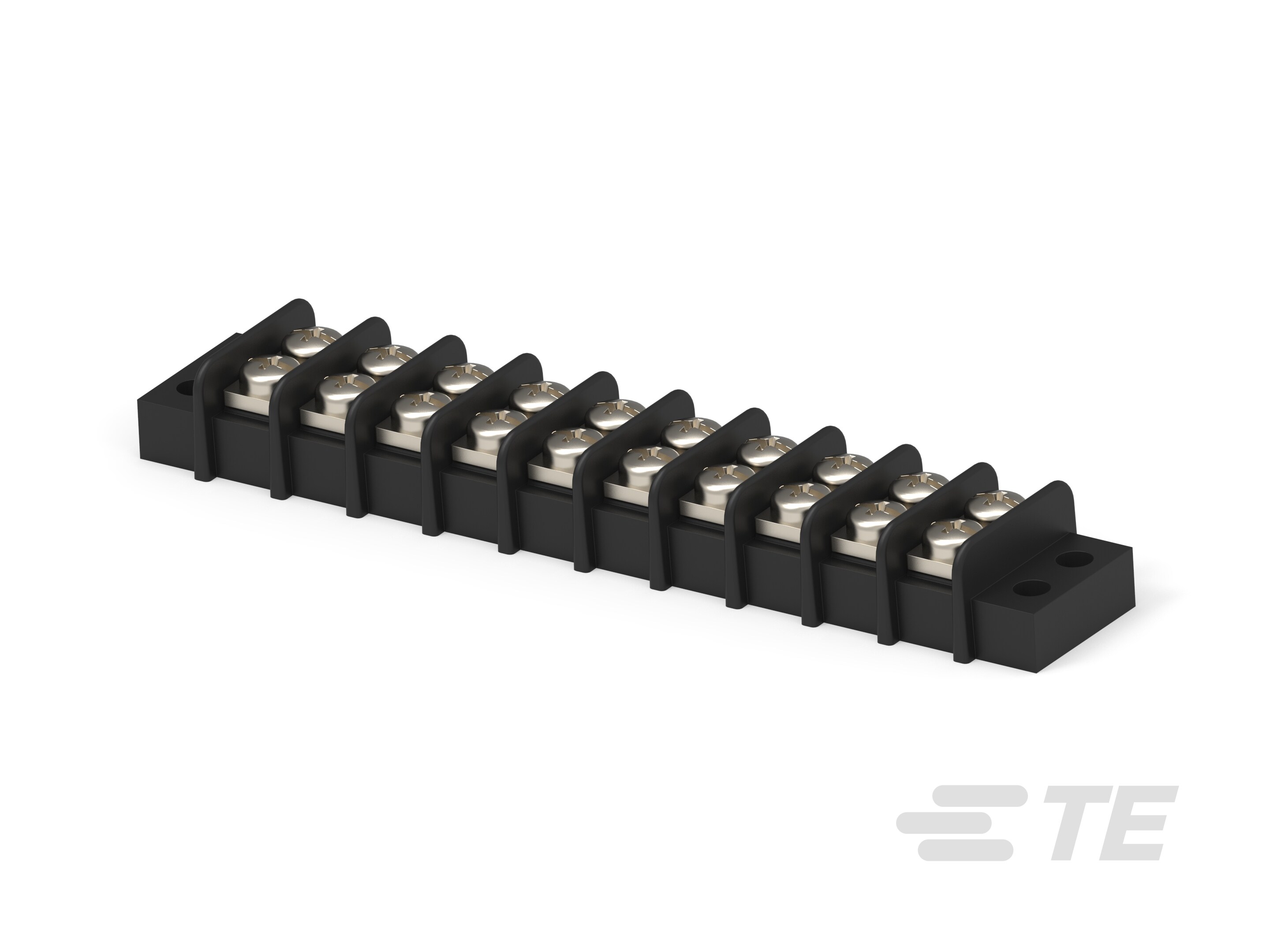

10P.374" DR BARRIER,W/WASHER

More >>

Specifications

AttributeValue
Product Category:
Barrier Terminal Blocks, Strips & Accessories Barrier Terminal Blocks & Strips
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1546307-0
Color:Black
Amperage:20 A
Housing Material:Polybutylene Terephthalate
Number of Contacts:10
Number of Rows:2
Mount Type:Panel
Maximum Operating Temperature:120 °C, 248 °F
Body Orientation:Straight
Pitch:.375 in, 9.53 mm
Voltage:300 V
Mount Angle:Vertical
Screw Size:6-32
Package Quantity:200
Number of Levels:1
Number of Positions:10
GPL:A46
Packaging:Carton
Operating Temperature Range:-40 - 120 °C, -40 - 248 °F
Mounting Ears:With
GPL Description:Industrial
Product Code:H926
Wire Size:22 - 12 AWG, .326 - 3.31 mm²
Screw Material:Steel
Length:112 mm, 4.41 in
Screw Plating:Nickel
Barrier Strip Style:Dual Barrier
Terminal Plating:Brass
Terminal Plating:Tin
Mounting Insert:Without
Mounting Options:End Mounting Ears
Screw Head Type:Combo Phil-Slot
Block Style:Flat
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:1-1546307-0
SKU:AMP1-1546307-0

Detailed Description

Enhance your industrial connections with our high-quality barrier terminal block. Made of durable Polybutylene Terephthalate in sleek black, it meets UL 94V-0 flammability standards for safety. With 10 brass contacts and a 20A amperage capacity, it ensures reliable power distribution. The straight body orientation and vertical mount angle offer versatile installation options, while the 9.53mm pitch accommodates various wire sizes. Operating efficiently in temperatures ranging from -40°C to 120°C, this terminal block is suitable for demanding environments. RoHS compliant and lead-free solder capable, it aligns with modern eco-friendly standards. Whether for panel or end mounting, this essential component guarantees secure and efficient connectivity for your applications.
