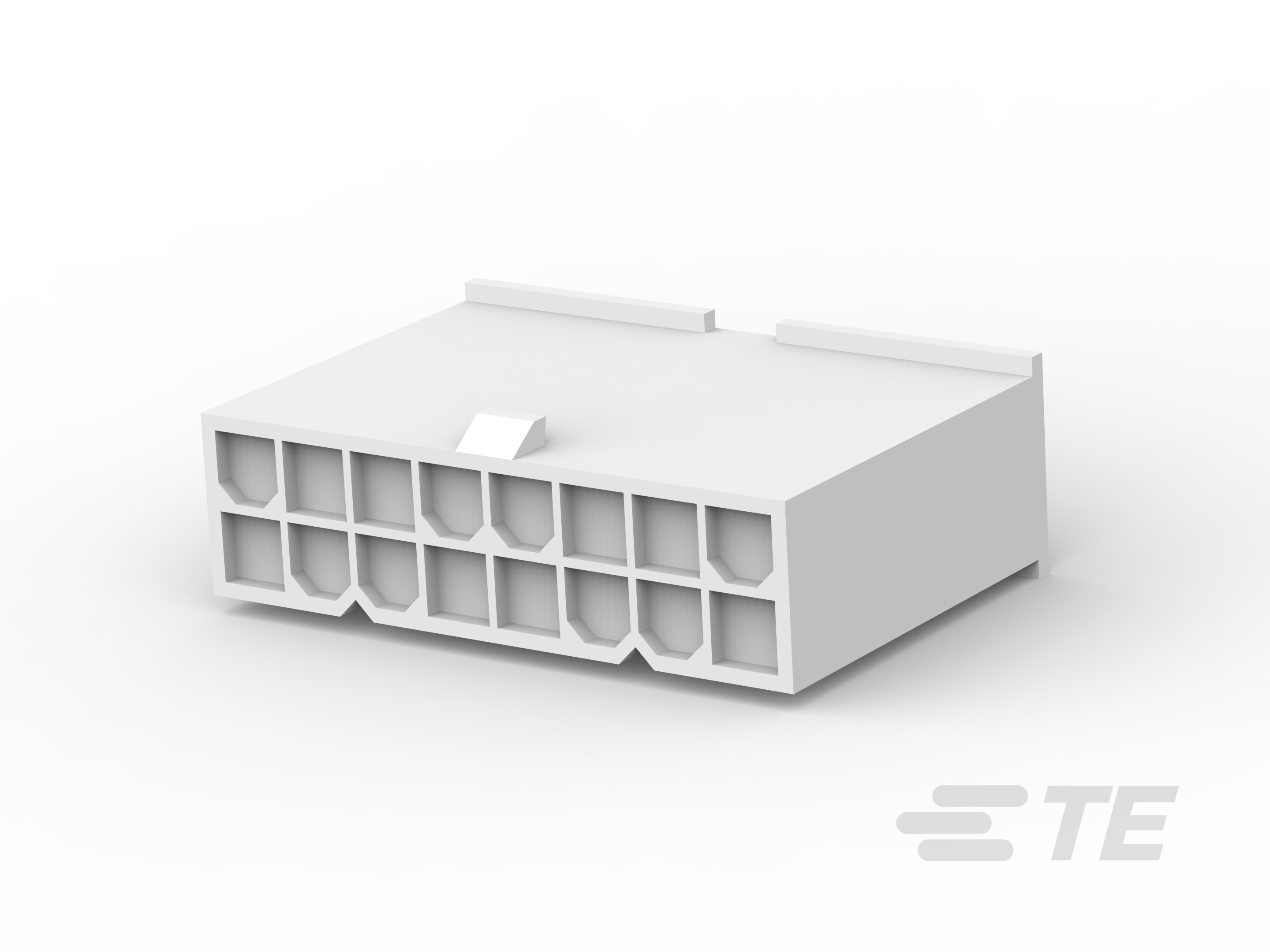

1-1586017-6

AMP1-1586017-6
Heilind Number:AMP1-1586017-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1586017-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

16P FH PLUG VAL-U-LOK V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1586017-6
Housing Material:Nylon
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:500
Cable Type:Discrete Wire
Number of Positions:16
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Connector Height:.378 in, 9.6 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Contact Layout:Matrix
Connector Length:1.37 in, 34.8 mm
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:23.8 mm, .937 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Insertion Force:15 Newton
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Multiple Contact Types:With
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-1586017-6
SKU:AMP1-1586017-6

Detailed Description

This Cable Mount Connector is a reliable solution for power and signal applications, with a voltage rating of 600 V AC. It features a durable Nylon housing in white, meeting UL 94V-0 flammability standards. With two rows of 16 pin contacts, it offers secure crimp termination for discrete wire cables. The 4.2 mm pitch and matrix contact layout ensure efficient connectivity. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it's suitable for diverse environments. With CSA and UL certifications, this connector guarantees quality and safety compliance. Packaged in a quantity of 500, it's ideal for bulk installations in various appliances. RoHS compliant, it aligns with environmental regulations, making it a sustainable choice for your connectivity needs.
