1-1586038-6

AMP1-1586038-6
Heilind Number:AMP1-1586038-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1586038-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

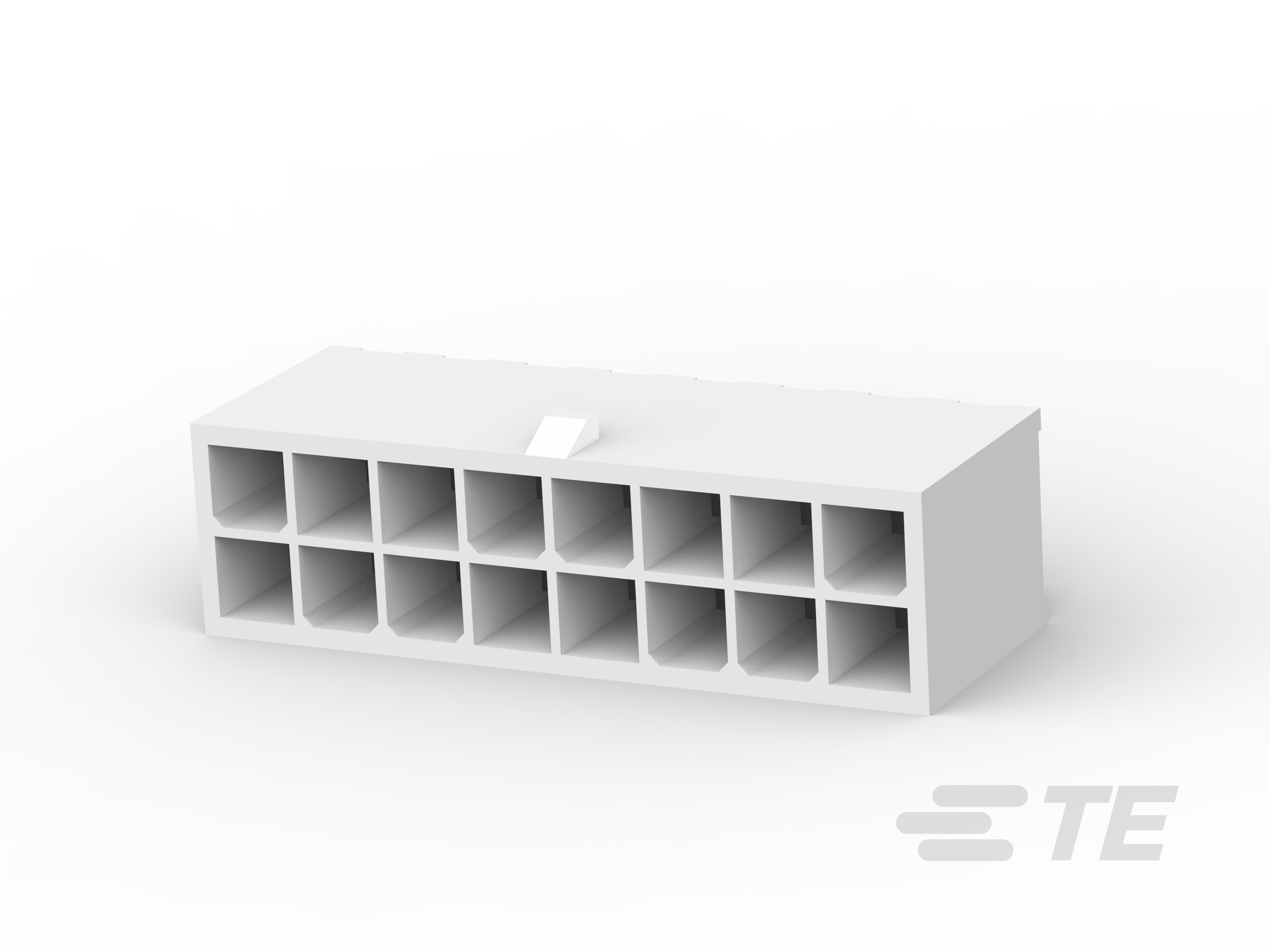

16P VRT HDR VAL-U-LOK V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1586038-6
Housing Material:Nylon
Number of Rows:2
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:165
Contact Amperage:9 A
Number of Positions:16
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:Without
PCB Thickness (Recommended):.063 in, 1.6 mm
Connector Height:12.8 mm, .504 in
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Power Positions:16
Contact Layout:Inline, Matrix
Connector Length:1.37 in, 34.8 mm
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.384 in, 9.75 mm
Mating Retention:With
PCB Mount Alignment:Without
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Max Insulation Diameter:2.39 in, 2.39 mm
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-1586038-6
SKU:AMP1-1586038-6

Detailed Description

This UL and CSA-compliant power connector is designed for vertical board mount installation in appliances, featuring a natural nylon housing for durability. With a contact layout of 16 positions in two rows, it offers reliable power transmission at up to 600V AC and 9A. The through-hole solder termination method ensures secure attachment to a 1.6mm thick PCB. Its compact design, measuring 34.8mm in length and 9.75mm in width, is ideal for wire-to-board connections in high-temperature environments. The connector, with a pitch of 4.2mm, also includes keying for proper mating alignment. Suitable for a wide range of power applications, this header type connector is RoHS compliant, making it a sustainable choice for your electronic projects.
